TS145401 Electronic Vane Anemometer

Á¦Á¶»ç : DAVIS
Á¦Ç°¹øÈ£:TS145401
½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

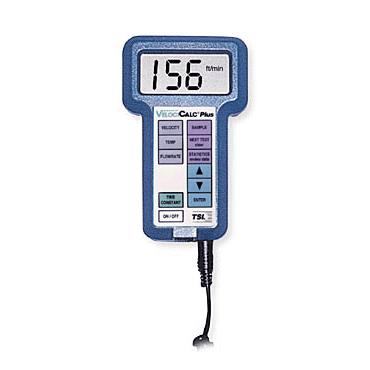

VelociCalc¢ç/VelociCalc Plus¢ç Rotating Vane Anemometers accurately measure air velocity
VelociCalc¢ç and VelociCalc Plus¢ç Rotating Vane Anemometers accurately measure air velocity and temperature, calculate flowrate, perform averaging, and determine minimum and maximum readings. In addition, the Model 8324 provides both single point and continuous data logging capability.

Features
  • Wide velocity range of 50-6000 FPM (0.25 to 30 m/sec)
  • Temperature range of 0¡Æ to 80¡ÆC
  • 100 mm-diameter rotating vane head provides a reliable weighted average of velocity readings
  • Sweep mode makes it easy to sweep across an area for one overall measurement
  • Sampling function records multiple point measurements
  • Statistics function displays average, maximum and minimum values, and the number of recorded samples
  • Flowrate feature calculates volumetric flow when the user inputs the duct shape and size
  • Variable time constant modes available for a steady display when measuring fluctuating flows
  • Optional portable printer provides hard copy documentation of your readings

Data Logging Features (Model 8324)
  • Data logging ability allows user to log 2849 samples with a time and date stamp
  • Single point and continuous data logging modes to fit your application
  • Data can be reviewed on-screen, printed, and downloaded to a computer spreadsheet program
  • TSI downloading software permits easy transfer of data to a computer

SPECIFICATIONS

Velocity Range

0.25 to 30 m/s (50 to 6,000 ft/min)
Accuracy ¡¾1.0% of reading or ¡¾0.015 m/s (¡¾3 ft/min) whichever is greater
Temperature Range 0 to 80.3¡ÆC (32 to 176¡ÆF)
Resolution 0.1¡ÆC (0.1¡ÆF)
Accuracy ¡¾0.5¡ÆC (¡¾1.0¡ÆF)
Instrument Temperature Range
Operating (electronics) 5 to 45¡ÆC (40 to 113¡ÆF)
Operating (probe) 0 to 80¡ÆC (32 to 176¡ÆF)
Storage -20 to 60¡ÆC (-4 to 140¡ÆF)
Volumetric Flowrate Range 0 to 1,230,000 l/s, 0 to 4,360,000 m3
(0 to 2,604,000 ft3/hr)
Duct Size Range 1 to 635 cm in increments of 0.1 cm
(1 to 250 inches in increments of 0.1 inches)
Averaging Capability Range Up to 255 values each of velocity, temperature
Logging Capability (TS145403) Up to 2849 samples and 1,000 test ids
Intervals 1, 2, 5, 10, 15, 20, 30 and 60 sec and 2, 5, 10, 15, 20, 30 and 60 min
Time Constant Intervals 1, 2, 5, 10, 15, and 20 sec
External Meter Dimensions 10 cm x 16.8 cm x 3.8 cm
(3.9 in. x 6.6 in. x 1.5 in.)
Vane Head Diameter 100.0 mm (4 in.)
Meter Weight (with batteries) 0.68 kg (1.5 lbs)
Display 4-digit LCD, 15 mm (0.6 in.) digit height
Power Four AA-size batteries (included) or AC adapter (optional)
Printer Interface Serial
Baud Rate 1200

CAT NO. MODEL DEscRIPTION AVAIL PRICE
TS145401   8322   VANE ANEMOMETER   Yes   1,717,200
TS145403   8324   VANE ANEMOMETER W/DATALOGGING   Yes   2,149,200
TS14519   8925   PORTABLE PRINTER WITH BUILT-IN RECHARGEABLE BATTERY PACK   Yes   853,200



Includes 115 VAC adapter/charger cable and 5 rolls of paper
TS145411   802140   ARTICULATING TELESCOPING HANDLE   Yes   324,000
