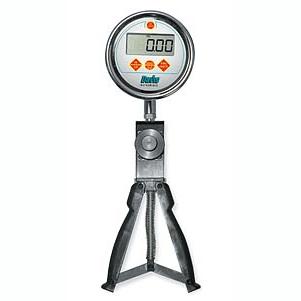

TD100 0-300 psig Pneumatic Hand Pump

제조사 : DAVIS
제품번호:TD100
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Versatile - Self contained pressure source for calibration of gauges and switches
Features
  • Versatile - Self contained pressure source for calibration of gauges and switches
  • Safe - No electrical power or high pressure bottles. Pressure tested to 2x rated pressure
  • Accurate — 1/4% full scale with the line of test gauges (optional)
  • Adjustable — Precision vernier provides for a wide range of pressure adjustment
  • User friendly — Compact size and light weight
  • Easier to use — Low handle force at all pressures
  • Rugged — “Industrial strength” construction

SPECIFICATIONS

Model

 TD100 TD1000 TD2000
Pressure Range 0-300 psig 0-300 psig/0-25" Hg Vac 0-3000 psig
Weight 1.3 lbs. (0.6 kg) 1.4 lbs. (0.65 kg) 1.75 lbs (0.79 kg)
Dimensions (w/o Test gauge) 9.5" L x 5" W x 3" D 10" L x 5" W x 3" D 11.5" L x 5" W x 3" D
Test Connections 1/4" NPT female 1/4" NPT female 1/4" NPT female
Materials of Construction Machined aluminum body, stainless steel shaft and needle valve, ABS plastic handles, brass connection tee and connector
- Hose Nylon Nylon braided metal
- Seals Viton Viton Viton
  Viton is a registered trademark of DuPont Dow Elastomers
CAT NO. MODEL DEscRIPTION AVAIL PRICE
TD100   870-300   0-300 psig Pneumatic Hand Pump (without Test gauge)   Yes   1,026,000
TD2000   8112-3000   0-3000 psig Hydraulic Hand Pump (without Test gauge)   Yes   1,630,800　
TD1000   8111-300   -13.7-300 psig Duplex Hand Pump (without Test gauge)   Yes   1,296,000
D6551415   65514-15B55   OPTIONAL -14.7" Hg Vac to 15 PSI Gauge, bottom connection without mounting flange FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,414,800

　

LCD Resolution   .001
D6551421   65514-21B55   OPTIONAL -14.7" Hg Vac to 30 PSI Gauge, bottom connection without mounting flange FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,414,800

　

LCD Resolution   .001
D6551423   65514-23B55   OPTIONAL -14.7" Hg Vac to 100 PSI Gauge, bottom connection without mounting flange FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,414,800

　

LCD Resolution   .01
D6551426   65514-26B55   OPTIONAL -14.7" Hg Vac to 300 PSI Gauge, bottom connection without mounting flange FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,414,800

　

LCD Resolution   .01
D6551427   65514-27B55   OPTIONAL -14.7" Hg Vac to 500 PSI Gauge, bottom connection without mounting flange FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,630,800

　

LCD Resolution   .01
D6551429   65514-29B55   OPTIONAL -14.7" Hg Vac to 1000 PSI Gauge, bottom connection without mounting flange, LCD Res: 0.1 FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,630,800



　
D6551432   65514-32B55   OPTIONAL -14.7" Hg Vac to 2000 PSI Gauge, bottom connection without mounting flange, LCD Res: 0.1 FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,630,800



　
D6551433   65514-33B55   OPTIONAL -14.7" Hg Vac to 3000 PSI Gauge, bottom connection without mounting flange, LCD Res: 0.1 FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,630,800



　
D6551435   65514-35B55   OPTIONAL -14.7" Hg Vac to 5000 PSI Gauge, bottom connection without mounting flange, LCD Res: 0.1 FOR Hand Pumps and Digital Test Gauge/Calibrator   Yes   1,725,840



　
