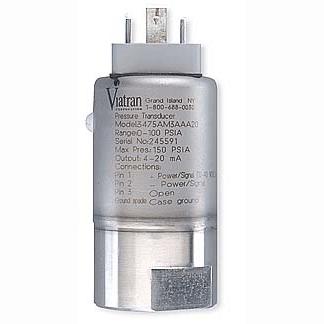

VI247 Pressure Transmitters, Specify Range

제조사 : DAVIS
제품번호:VI247
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The "47" Series is available with pressure ranges from 0-10 to 0-20K PSI.
Viatran's Models 247 and 347 are designed for applications where very rugged yet inexpensive pressure transmitters are required.

This enables Viatran to provide the advantages of bonded foil sensing technology at prices typical of less reliable semiconductor sensors.

The "47" Series is available with pressure ranges from 0-10 to 0-20K PSI.

The "47" Series has zero adjustment control that also makes setup fast and easy.

When your application requires a large quantity of rugged pressure transmitters, Viatran's "47" Series offers the same high quality standards that you build into your equipment.


Features
  • Low price
  • Adjustable zero
  • Resistance to pressure spikes
  • Cost effective DIN connector
  • Welded stainless steel construction

Applications
  • Hydraulic systems
  • Injection molding
  • Die casting
  • Off road vehicles
  • Compressors and pumps
  • High volume usage

SPECIFICATIONS

Full Scale Pressure Range (FSPR)

 0-10, 0-15, 30, 50, 75, 100, 200, PSIG, PSIA, 0-300, 400, 500, 750, 1K, 1500, 2K , 3K, 4K, 5K, 7500, 10K, 15K, 20K, PSIG
Non-Linearity (Best Fit Straight Line) ≤ ± 0.5% FSO
Hysteresis & Repeatability < .25% FSO
Full Scale Output (FSO) Series A: 5 VDC ± 2% at 70°F
Series B: 16 mA ± 2% at 70°F
Resolution Infinite
Long Term Stability ≤ ±0.5% FSO per 6 months
Compensated Temperature Range 70°F to 170°F
Maximum Operating Temperature Range 200°F
Minimum Operating Temperature Range -20°F
Electrical
Supply Voltage
10 to 40 VDC
Output Signal Series A: 0 to 5 VDC
Series B: 4 to 20 mA
Mechanical
Pressure Connectors 1/4" NPT Female
Proof Pressure 1.5 times FSPR or 25K PSI, whichever is less
Burst Pressure 5 times FSPR or 30K PSI, whichever is less

Standard Pressure Ranges, please choose code that matches your specific range

Code

Range
Code

Range

Code

Range

Code

Range

AA

0-5
AM

0-100

AW

0-750

BE

0-4000

AB

0-10
AP

0-200

AY

0-1000

BF

0-5000

AC

0-15
AR

0-300

AZ

0-1500

BH

0-7500

AF

0-30
AT

0-400

BA

0-2000

BM

0-10K

AH

0-50
AU

0-500

BC

0-3000

BP

0-15K

AK

0-75

CAT NO. MODEL DEscRIPTION AVAIL PRICE
VI247   247G   Pressure Transmitters, Specify Range   Yes   429,840
VI2471   247A   Absolute Pressure Transmitter (<200 PSI)   Yes   529,200
VI2472   247V   Vacuum Pressure Transmitter (<15 PSI), Specify Range   Yes   429,840
VI347   347G   Pressure Transmitter, Specify Range   Yes   388,800
VI3471   347A   Absolute Pressure Transmitter (<200 PSI), Specify Range   Yes   529,200
VI3472   347V   Vacuum Pressure Transmitter (<15 PSI), Specify Range   Yes   429,840　
