WK4262761 Submersible Liquid Level Transmitter

Á¦Á¶»ç : DAVIS
Á¦Ç°¹øÈ£:WK4262761
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

The transmitter features a watertight,vented polyurethane cable that can withstand over 220 pounds

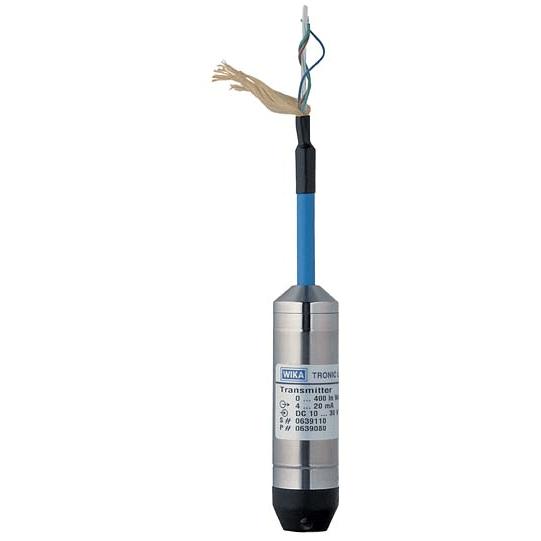

WIKA LS-10 submersible liquid level transmitters and transducers are engineered for a wide variety of industrial and municipal liquid level measurement applications. Each transmitter undergoes extensive quality control testing and calibration to achieve an accuracy < 0.25% full scale. The printed circuit boards use state-of-the-art surface mount technology for protection against mechanical shock and vibration. Each is temperature compensated to assure accuracy and long-term stability when exposed to severe ambient temperature variations.

The transmitter features a watertight, vented polyurethane cable that can withstand over 220 pounds of strain. This allows the transmitter to be supported without any additional cabling. The transmitter meets NEMA 6P and IP 68 requirements for submersion up to 300 feet.

This compact, rugged submersible pressure transmitter is suitable for applications in level measurement, water and wastewater treatment, well depth measurement, and offshore water depth measurement.



CAT NO. MODEL DEscRIPTION AVAIL PRICE
WK4262761   4262761   Submersible Liquid Level Transmitter, Range: 0 - 100 Inches WC   Yes   810,000
WK4262779   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 150 Inches WC   Yes   810,000
WK4262787   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 250 Inches WC   Yes   810,000
WK4262809   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 5 psi   Yes   810,000
WK4262817   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 10 psi   Yes   810,000
WK4262825   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 15 psi   Yes   810,000
WK4262883   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 25 psi   Yes   Call 031-777-1588
WK4262841   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 30 psi   Yes   810,000
WK4262850   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 50 psi   Yes   810,000
WK4262868   ¡¡ ¡¡ Submersible Liquid Level Transmitter, Range: 0 - 100 psi   Yes   810,000
