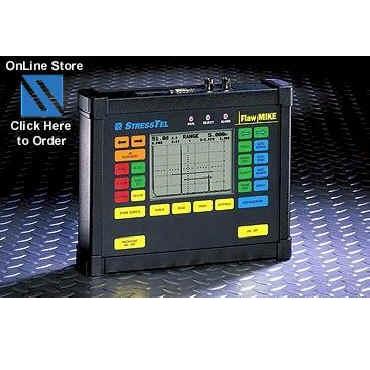

FLAWMIKE ÃÊÀ½ÆÄ Å½»ó±â STRESSTEL

Á¦Á¶»ç : Stresstel
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â


µ¥ÀÌÅÍ ½ÃÆ®

±â¼ú ÂüÁ¶ ÀÚ·á

| ¼ÒÇÁÆ®¿þ¾î FlawWare | FlawMike °¡»ó ¹æ¹® | Flaw Transducers |


Now Available With DAC
    (Distance Amplitude Correction)
Option

The StressTel FlawMIKE is easy-to-use with direct access keys for all frequently used functions. One key press changes gain, turns the backlight on, prints a report, and displays all FlawMIKE settings. The high resolution LCD display is easy-to-read with a 60Hz update rate and excellent daylight visibility. The rugged metal housing and sealed keypad handle the abuse of the toughest working conditions.

Whether you are looking for delaminations in a tank bottom, pipe wall thickness through attenuative coatings, or defects in a girth weld, choose the StressTel FlawMIKE- your
tough, affordable, easy-to-use flaw detector.




FlawMike Specifications
Key Features
Display
1/4 VGA transflective LCD
3.8 in x 2.9 in (96mm x 74mm)
   viewing area
320 x 240 pixel density
60 Hz update rate
Adjustable contrast and backlight

Physical Description
9.6 inches wide (244mm)
7.7 inches long (196mm)
2.1 inches deep (53mm)
5 lbs (2.27kg) with batteries
Environmentally sealed aluminum
   case

Weather resistant keypad
Operating temperature 32 degrees
   Fahrenheit to 113 degrees
   Fahrenheit (0 degrees Celsius to 45
   degrees Celsius)

  • Five pounds total weight
  • Direct access keys to all
       functions
  • Selectable pulser power
       settings: low and high
  • Measuring range from 0.14" to
       120" (3.6mm to 3000mm) in
       steel
  • Selectable transducer modes:
       single, dual and angle beam
  • Dual gates for accurate
       thickness measurements
  • Memory storage for 80 datasets
  • Selectable units of measure:
       inches and millimeters
  • Frequency range from 0.5 MHz
       to 15 MHz
  • Selectable damping settings
  • Built-In trig functions for
       precise flaw location
  • RS232 port for serial printers
  • Variable PRF settings



Power Supply
4 "C" Alkaline or NiCad batteries
Interchangeable and easy-to-access
Operating time 8 hours without
   backlight  6 hours with backlight

Special Features
On Screen Amplitude Measurement:
   % full screen height
Trig Functions: Calculation of sound
   path, projection distance and flaw
   depth
Set-Up Memory: 80 datasets
Digital Thickness: Echo-to-Echo
   measurement
Direct Report Printers: Epson, HP
   Deskjet, HP Laserjet and Seiko
   DPU
Language: English, German, French,
   Spanish and Italian
Unit Features
 1.  Active function



 2.   Digital thickness
 3.   User selectable large digit display
 4.  Active function
   increment/decrement keys
 5.  ANGLE sets wedge angle, X
   valueand material thickness
 6.  PROBE ZERO for transducer delay
 7. SETTINGS displays FlawMIKE
   settings
 8.   Data-set function keys
 9.  Dedicated ON/OFF BACKLIGHT
   key
 10.  Dual or single element
   measurement mode
 11.  Dedicated GAIN keys
 12.  Signal amplitude
 13.  Dual gates


FlawMike Kit Contains

 *

FlawMike Portable Ultrasonic Flaw Detector

 *

4 "C" NiCad Batteries

 *

External Battery Charger

 *

A.C. Power Supply

 *

Operation Manual

 *

Hardshell Transport Case

 *

Softshell Carrying Bag

 *

Certification of Calibration

Warranty
The FlawMike has a full one-year warranty on parts and labor excluding batteries.
