LA282130 DC input,green LED,85-264 Vac power

Á¦Á¶»ç : DAVIS
Á¦Ç°¹øÈ£:LA282130
½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

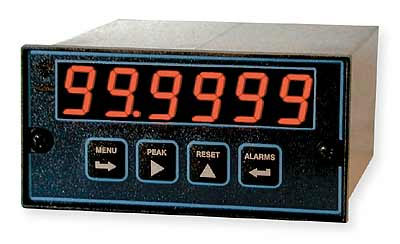

The DC Integrating Totalizer utilizes a voltage-to-frequency (V-to-F) converter to convert 0-1 mA
The DC Integrating Totalizer utilizes a voltage-to-frequency (V-to-F) converter to convert 0-1 mA, 4-20 mA or 0-10 V signals (jumper-selectable) to a frequency. That frequency can then be scaled to engineering units so that it functions as a process meter. The frequency pulses can also be totalized to integrate the input signal over time. Square root extraction is standard. For example, the meter can display flow rate in gallons per minute or totalized volume in gallons from the 4-20 mA signal of a flowmeter with a linear or squared output. It can also display kwatt-hours from a wattmeter with a 0-1 mA output.

Features
  • 0-1 mA, 4-20 mA & 0-10 V signal inputs
  • Capable of square root extraction, scaling of signal to engineering units, and totalizing the input
  • Ranges user-selectable & factory precalibrated
  • ¡¾999999 display span
  • 0.01% error
  • Read rate to 25/sec
  • Isolated 5, 10, 24 Vdc excitation output
  • 1/8 DIN, NEMA-4X front panel

SPECIFICATIONS
Display -999,999, 0.56" high LED digits
Zero & Span ¡¾999,999 (programmable)
Read Rate To 25/sec with adaptive digital filtering
Accuracy <0.01% FS ¡¾ 1 ct
Signal Inputs 0-1 mA, 4-20 mA & 0-10 V
Excitation 5V @ 100mA, 10V @ 120mA, 24V@ 50mA

CAT NO. MODEL DEscRIPTION AVAIL PRICE
LA282130   L70000VF   DC input, green LED, 85-264 Vac power   Yes   604,800
LA282131   L80000VF   DC input, red LED, 85-264 Vac power   Yes   604,800
LA282132   L71000VF   DC input, green LED, 9-37 Vdc power   Yes   645,840
LA282133   L81000VF   DC input, red LED, 9-37 Vdc power   Yes   645,840
LA282105   LDR   OPTIONAL Dual 10A Form C relays FOR DC Integrating Totalizer for Process Signals   Yes   172,800



(same slot as LA282106)
LA282106   LOC   OPTIONAL Dual isolated solid state relays FOR DC Integrating Totalizer for Process Signals   Yes   118,800



(same slot as LA282105)
LA282107   LAO   OPTIONAL Isolated analog output, 0-20 mA & 0-10 V, scalable FOR DC Integrating Totalizer for Process Signals   Yes   194,400



LA282108   L232   OPTIONAL RS-232 data I/O FOR DC Integrating Totalizer for Process Signals   Yes   129,600



(same slot at LA282109)
LA282109   L485   OPTIONAL RS-485 data I/O FOR DC Integrating Totalizer for Process Signals   Yes   172,800



(same slot at LA282108)
