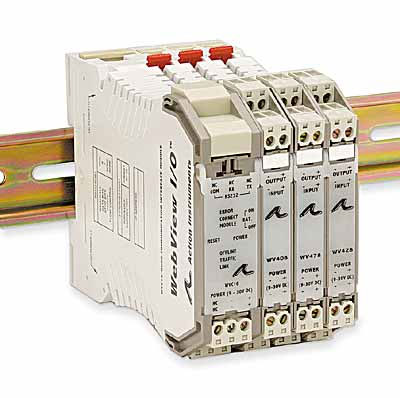

ACT1013 WebView I/O Conditioners

Á¦Á¶»ç : DAVIS
Á¦Ç°¹øÈ£:ACT1013
½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

This new line of conditioners provides features never before found in traditional signal conditioners.
This new line of conditioners provides features never before found in traditional signal conditioners. This series has greater input, output accuracy and stability than most signal conditioners on the market today. Another unique capability is a ìSmart Powerî feature that reduces the input power requirements during periods of light loading. In addition, they provides the user with the capability to view sensor data directly over your companyís intranet with a standard web browser. Just imagine, they will allow you to view configuration, maintenance and process information through a remote web browser. Further, the modules are capable of generating e-mail messages, triggered when process variables or maintenance based performance parameters exceed or fall below pre-set levels.

Web communications interface
Each interface module is capable of supporting 32 I/O modules. The controller contains, a web page server and an e-mail server as well as being the interface to an Ethernet network. All memory to support the signal conditioners historical data, storage of the web pages and all e-mail messages is contained on the Communications Interface, and is battery backed-up.
The Communications Interface actually downloads a JAVA applet to the clientís computer. The applet provides access to the signal conditioner's data. The information available includes the following:
• Module configuration summary • Module configuration editing • Diagnostic/warning status • Alarm setup & status • E-mail setup, editing & address book • Process variable viewing
This Series is still the answer if you do not currently need or think you will ever need web access to your data. These signal conditioners are stand-alone signal conditioners that do not need the Ethernet connection in order to be configured and maintained. They are configured via DIP-switches and push-button calibration just like the other series. If the need for web access arrives, which is inevitable in today's lean enterprise environments, simply mount the Communications Interface next to a group of up to 32 of these signal conditioners, connect it to the Ethernet, and you are up and running.


Features
  • Lower power requirements with ¡°Smart Power¡± control
  • Greatly improved input / output accuracy and stability
  • Configurable with or without ethernet connection
  • Provides remote diagnostic capability
  • Versatile alarm capabilities can provide e-mail notification when problems cccur
  • Lifetime warranty

CAT NO. MODEL DEscRIPTION AVAIL PRICE
ACT1013   WV408-0000   WebView I/O Conditioners   Yes   486,000
Inputs   Voltage: ¡¾150mV, ¡¾1.5V, ¡¾15V or ¡¾150VD / Current: ¡¾2.5mA or ¡¾25mA
Outputs   Voltage: 0 to 10VDC / Current: 0 to 20mA / Compliance: 18V@20mA (900W max)
ACT1014   WV428-0000   WebView I/O Conditioners   Yes   561,600
Inputs   T/C Types: B, C, E, J, K, N, R, S, T / Millivolt: -20 to +80mV
Outputs   Voltage: 0 to 10VDC / Current: 0 to 20mA / Compliance: 18V@20mA (900W max)
ACT1015   WV478-0000   WebView I/O Conditioners   Yes   561,600
Inputs   Frequency: 2Hz to 10kHz / Amplitude: 150mVp to 150Vrms
Outputs   Voltage: 0 to 10VDC / Current: 0 to 20mA / Compliance: 18V@20mA (900W max)
ACT418   WV418   WebView I/O Conditioners   Yes   637,200
Inputs   Voltage: ¡¾150mV, ¡¾1.5V, ¡¾15V or ¡¾150VD / Current: ¡¾2.5mA or ¡¾25mA
Outputs   Voltage: 0 to 10VDC / Current: 0 to 20mA / Compliance: 18V@20mA (900W max)
ACT419   WV419   WebView I/O Conditioners   Yes   529,200
Inputs   Voltage: ¡¾150mV, ¡¾1.5V, ¡¾15V or ¡¾150VD / Current: ¡¾2.5mA or ¡¾25mA
Outputs   Voltage: 0 to 10VDC / Current: 0 to 20mA / Compliance: 18V@20mA (900W max)
ACT420   WV420   WebView I/O Conditioners   Yes   529,200
Inputs   Voltage: ¡¾150mV, ¡¾1.5V, ¡¾15V or ¡¾150VD / Current: ¡¾2.5mA or ¡¾25mA
Outputs   Voltage: 0 to 10VDC / Current: 0 to 20mA / Compliance: 18V@20mA (900W max)
ACT1016   WVC16   OPTIONAL WebView Communications Interface FOR WebView I/O Conditioners   Yes   745,200



ACT03   MD03   OPTIONAL TS35 x 7.5 DIN Rail (2 meters) FOR WebView I/O Conditioners   Yes   108,000
ACT031   MB03   OPTIONAL End Bracket for MD03 FOR WebView I/O Conditioners   Yes   12,960
ACT905   G905   OPTIONAL 24VDC Power Supply (0.5 Amp) FOR WebView I/O Conditioners   Yes   334,800
ACT910   H910   OPTIONAL 24VDC Power Supply (1.0 Amp) FOR WebView I/O Conditioners   Yes   324,000
ACT915   H915   OPTIONAL 24VDC Power Supply (2.3 Amp) FOR WebView I/O Conditioners   Yes   388,800
