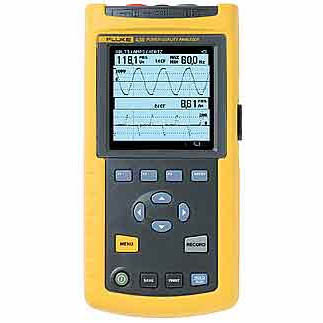

FL43K Fluke Power Quality Analyzer Kit

제조사 : Fluke
제품번호:FL43K
판매가격 : 전화문의
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Maintain power systems, troubleshoot power problems, diagnose equipment features
Maintain power systems, troubleshoot power problems, diagnose equipment features

The Fluke 43B Power Quality Analyzer performs the measurements you need to maintain power systems, troubleshoot power problems and diagnose equipment failures. All in a rugged handheld package.


Features
  • Measure power harmonics and catch intermittents
  • Voltage, current and power harmonics
  • Up to 51st harmonic
  • Total harmonic distortion (THD)
  • Phase angle of individual harmonics
  • Voltage and current waveforms
  • True-rms voltage and current
  • Frequency
  • Watts, power factor, displacement power factor, VA and VAR
  • Catch voltage transients and waveform distortion
  • Catch and save up to 40 transients
  • Measures resistance, diode voltage drop, continuity, and capacitance
  • Records two selectable parameters for up to 16 days
  • Supports temperature accessories with direct readout in degrees
  • 10 measurement memories for saving screens
  • 3 year warranty on the Fluke 43, 1 year on accessories

Included Accessories
  • TL24 Test Leads
  • AC20 Industrial Test Clips
  • AC85 Large Jaw Alligator Clips
  • TP1 Flat-tipped Slim-ReachTM Test Probes
  • Power Quality Video
  • 80i-500s 500A AC Current Clamp
  • TP4 4 mm Round Slim-ReachTM Test Probes
  • SW43W FlukeView® Analyzer Software for Windows
  • PM 9080/001 Optically Isolated RS232 Interface Adapter
  • BP120 Rechargeable Ni-Cd battery Pack (installed)
  • PM 8907 Line Voltage Adapter/Battery Charger
  • Shielded Banana-to-BNC Adapter
  • FlukeView® Power Quality Analyzer Users Manual

SPECIFICATIONS

Input Characteristics

 Ranges Accuracy
Input impedance 1 MΩ, 20 pF
Voltage rating 600V rms, CAT III
Volt/Amps/Hertz Display
True-rms voltage (ac + dc) 5.000V, 50.00V, 500.0V, 1250V* ±(1% + 10 counts)
True-rms current (ac + dc) 50.00A, 500.0A, 5.000 kA, 50.00 kA ±(1% + 10 counts)
Mains frequency 40.0 to 70.0 Hz ±(0.5% + 2 counts)
Power, Watts, Volt-Amps,
VA Reactive Volt-Amps, VAR		 250W, 2.50 kW, 25.0 kW, 250 kW, 2.50 MW  ±(1% + 1 counts)
Power Factor, PF, Displacement Power Factor, DPF 0.00 to 0.25, 0.25 to 1.0  Not specified ±0.01
Harmonics Display
Voltage 1st to 51st harmonic ±(3% + 2 counts) to ±(15% + 5 counts)
Current 1st to 51st harmonic ±(3% + 8 counts) to ±(5% + 8 counts)
Power 1st to 51st harmonic ±(5% + 2 counts) to ±(30% + 5 counts)
Line frequency 40 Hz to 70 Hz fundamental ±0.25 Hz
Phase 2nd to 51st harmonic ±3° to ±15°
K-factor 1.0 to 30.0 ±10%
Sags and Swells Recording
Recording times 4 min to 16 days (selectable)
Installed battery Rechargeable Ni-Cd pack
Operating time 4 hours
Temperature 0°C to 50°C (32°F to 122°F)
Size (H x W x D) 232 x 115 x 50 mm (9.1 x 1.5 x 2 inches)
Weight 1.1 kg (2.5 lbs)
Surge protection 6 kV on input A and B
CAT NO. MODEL DEscRIPTION AVAIL PRICE
FL43K   43/003   POWER QUALITY ANALYZER   Yes   4,030,020
