Features
¡Ü Measures Displacement, Velocity & Acceleration
¡Ü Standard 100 mV/g Accelerometer
¡Ü Portable, battery-operated
¡Ü Large LCD Display
¡Ü Digital, solid-state circuitry
¡Ü High-impact polystyrene case
¡Ü Pushbutton operation
¡Ü Optional headphones

APPLICATIONS
¡Ü Fans, Motors, Pumps and Compressors
¡Ü Condition Monitoring
¡Ü Vibration Trending
¡Ü Vibration Severity Analysis

DEscRIPTION
The Model 205 is a protable, hand-held digital vibration
meter that measures machinery vibration. It is used to
measure vibration on all types of rotating machinery including fans, motors, pumps, compressors as well as many other types of industrial machines.

The Model 205 features a standard 100mV/g accelerometer
that allows operators to read measurements in displaceme
nt (mils), velocity (ips) and acceleration (g's)/ The rugged, high-impact polystyrene case is light weight and easy to carry. Color-coded pushbuttons select displacement, velocity and acceleration measurements. It operates on 4 AA size alkaline batteries with a self diagnostic "low battery" condition signal. The large 3/4" character, digital display is easy to read.

The Model 205 has an audio output jack and optional headphones(electronic stethoscope) to allow an operator to listen to the vibration signal to aid in determining the source of vibration.

BENEFITS OF VIBRATION MONITORING

Vibration monitoring is a simple, effective maintenance tool that can help rotating equipment manufactures, service contractors and maintenance departments save costs and increase profitability.

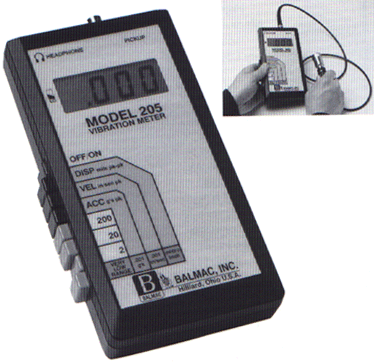

Model 205 features large LCD display, color-coded
pushbutton operation and light-weight portability.

Studies show most rotating machinery failures are preceded
by a rise in vibration levels. Excessive vibration results in bad bearings, cracks in pipes and foundations, broken mounting bolts, misalignment and unbalance. Even more serious, an entire HVAC system, production line, or pumping
operation could be shut down due to individual piece of equipment failing.

Periodically measuring and recording vibration data in rotating machinery reveals trends and increased vibration levels. Analyzing this data assists operators to schedule maintenance. Minor, less costly problems are corrected before they become expensive faliures.

Vibration monitoring is useful in all types of industrial applications including manufacturing, commercial buildings,
processing plants, pumping operations, automotive assembly, power generation, engineering and marine operations.
SPECIFIVATIONS
AMPLITUDE RANGE: English: 0.001 to 199 mils pk-pk (peak-to-peak) Displacement
0.001 to 199 im/sec pk (peak) Velocity
0.001 to 199 g's pk (peak) Acceleration
Note:          Very Low Range in units of 0.001 g's, 0.001 in/sec, & micro-inches
Metric: (250M)         Displacement micrometers (¥ìm) peak-to-peak
        Velocity millimeters-per-second (mm/sec) peak
RANGE:Four selectable ranges with over-range indication for each range
MODEL                 205 English    205M Metric
High Range              200 = 0 to 199.9 2000 = 0 to 1999
Medium Range              20 = 0 to 19.99 200 = 0 to 99
Low Range              2 = 0 to 1.999 20 = 0 to 19
Very Low Range              0 to 199.9 0 to 199.9
Note:              Very Low Range in units of 0.001 g's, 0.001 in/sec, & micro-inchs
SENSITIVITY : Displacement: 0.0000001 inch (0.001 mil) (1 micro-inch) (0.0254 ¥ìm)
Velocity:               0.001 inch/sec (0.02 mm/sec)
Acceleration:              0.001 G
ACCURACY:              5% FS (+/- 2.5%) instrument [see performance specificiations on pickup]
FREQUENCY RANGE:              20 to +300,000 rpm (0.4 to +5,000 Hz)
DISPLAY:              2 1/2 digit, numeric LCD (with Low Battery indicator); 3/4" char.
INPUT:              Industrial ICP Accelerometer with 100 mV/g Sensitivity
OUTPUT:              Headphones or Signal Output with 1/8" Mono jack
CONTROLS:              Color-coded Function pushbuttons for all measurements
POWER:              Four Size AA standard alkaline batteries 1.5 Volts
TEMPERATURE:              32¢ª to 122¢ªF (0¢ª to 50¢ªC)
ENVIRONMENTAL:              Relative humidity 0-95% non-condensing
DIMENSIONS: Model 205:          7.67" H ¡¿ 3.97" W ¡¿ 1.73" D (19.5 ¡¿ 10.1¡¿ 4.4 cm)
Carrying Case:             13.5" H ¡¿ 10.5" W ¡¿ 4.5" D (34.3 ¡¿ 26.7 ¡¿ 11.4 cm)
WEIGHT: Unit & accessories:    5 lbs (2.3kg)
Unit & pickup:             <2 lbs (<1 kg)
———————————————————————————————
Pickup Specifications


     SENSITIVITY (+/-20%): 100 mV/g
FREQUENCY RANGE (+/-10%):     26 to +300,000 rpm (0.4 to +5,000Hz)
SHOCK LIMIT:            5000 g pk
TEMPERATURE RANGE:            -65¢ª to +250¢ªF (-54¢ª to + 121¢ªC)
CONNECTOR TYPE:            MIL-C 5015 2-Pin Connector
CONNECTOR LOCATION:            Top
CONNECTIONS:            Pin A = Power Signal
  Pin B = Sensor Ground
MOUNTING:            1/4-28 UNF Thread Mounting Hole
MOUNTING TORQUE:            2 - 5 ft/lb (2,7 to 6,8 N-m)
CASE MATERIAL:            SS (Stainless Steel)
SEALING:            Welded Hermetic
WEIGHT:            2.8 ounces (79 grams)
SIZE:            7/8 Hex ¡¿ 1.9 in (22,2 ¡¿ 48,3  mm) (Hex ¡¿ Height)

STANDARD PACKAGE
1. Model 205 Vibration Meter
2. Model 601 Accelerometer Vibration Pickup
3. Model 059-5' Straight Pickup Cable
4. Model 052 Magnetic Pickup Base
5. Manual and Calibration Certificate (NIST Traceable)
6. Model 032A Carrying Case

OPTIONAL ACCESSORIES
7. Model 033 Headphones (1/8" Mono plug)
8. Model 059-5R' Retractile Coil-Cord
9. 8106 Vibration Record Sheets
10. 8107 Vibration Pickup Cable

Two-Year Warranty: for complete warranty information see Balmac catalog.
VIBRATION METER
MODEL 205 DIGITAL VIBRATION METER KIT  2,450,000¿ø
  Consisits of: 205 Meter (with Batteries AA 1.5 Volt [4]) (205M = Metric unit)
    601 Vibration Pick up 100 mV/g
    059-5S Pickup Cable (5' Straight Cord)
    052 Magnetic Pickup Base
    032A Carrying Case
    Manual and Calibration Certificate
