Ex 171-3 Part no. 0577 1733

Á¦Á¶»ç : Testo
½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

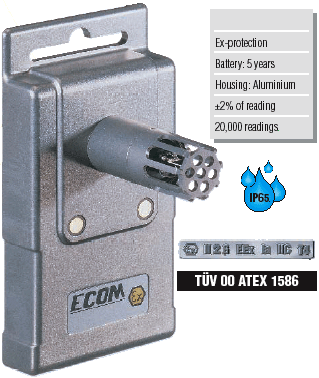

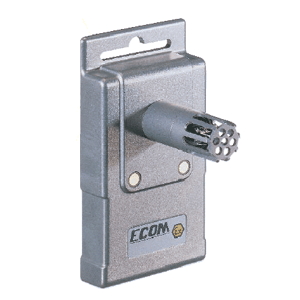

The Ex 171-3, in its extremely robust metal housing, guarantees a high measuring accuracy level
Electronic thermohygrograph for Ex-zones

Temperature monitoring in hazardous areas


Data analysis on your PC via user-friendly Windows¢ç software. Table and graphic analysis of data; all measurement and limit values at a glance
The Ex 171-3, in its extremely robust metal housing, guarantees a high measuring accuracy level for long-term measurements in hazardous areas.

The interface to download the data to your PC is attached outside the hazard area. The data is analysed in table or graph form via easy-to-use software.


¡Ü Tamper-proof readings
¡Ü Theft-proof mounting
¡Ü Control and adjustment option with adjustment set

Ex 171-3

Ex 171-3, humidity data logger %RH, ¡ÆC, incl. starting magnet, battery and calibration protocol

Part no.      0577 1733   2,157,000 ¿ø

Ordering data for Accessories Part no.
Holder with lock for data logger
Theft-proof
0554 1782
92,000 ¿ø
ComSoft 3 - Professional with data management
Incl. database, analysis and graphics function, data analysis, trend curve (not for Ex-zone)
0554 0830
617,000 ¿ø
Interface, attachable to data logger
Not for use in Ex-zone
0554 1781
112,000 ¿ø
Control and humidity adjustment set 11.3%RH/75.3%RH incl. adapter for humidity probes (not for use in Ex-zone) 0554 0660
487,000 ¿ø
Stainless steel sintered cap, ¨ª 21 mm, can be screwed onto humidity probe
Protection in case of high mechanical load and high velocities
0554 0640
77,000 ¿ø
Transport case (plastic) for data loggers and accessories
Not for use in Ex-zone
0516 0117
316,000 ¿ø
ISO calibration certificate/Humidity
Humidity data logger; calibration points 11.3%RH and 75.3%RH at +25¡ÆC; per channel/instrument
0520 0076
268,000 ¿ø
DKD calibration certificate/Humidity
Humidity data logger; cal. points 11.3%RH and 75.3%RH at +25¡ÆC; per channel/instrument
0520 0246
689,000 ¿ø
ISO calibration certificate/Temperature
Temperature data logger; calibration points -18¡ÆC; 0¡ÆC; +60¡ÆC per chan./instr.
0520 0151
230,000 ¿ø
ISO calibration certificate/Temperature
Temperature data logger; calibration points -8¡ÆC; 0¡ÆC; +40¡ÆC per channel/instrument
0520 0171
230,000 ¿ø
DKD calibration certificate/Temperature
Temperature data logger; cal. points -20¡ÆC; 0¡ÆC; +60¡ÆC; per chan./instr.
0520 0261
740,000 ¿ø
Recommended kit:
Ex 171-3, The Set in the Case
Ex 171-3, humidity data logger %RH, ¡ÆC, incl. starting magnet, battery and calibration protocol

ComSoft 3 - Professional with data management

Interface, attachable to data logger

Transport case (plastic) for data loggers (max. 5 off) and accessories

Technical data
Probe type Testo humid. sensor, cap. NTC
Meas. range 0... +100 %RH -10... +50 ¡ÆC
Accuracy
¡¾ 1 digit
¡¾2 %RH (+2... +98 %RH) ¡¾0.4 ¡ÆC (-10... +50 ¡ÆC)
Resolution 0.1 %RH (0... +100 %RH) 0.1 ¡ÆC (-10... +50 ¡ÆC)


Memory

20000

Battery life: Lithium battery up to 5 years
Material
/Housing
Aluminium, anodized Software: Menu-driven from DOS version 3.1 and
Oper. temp. -20... +70 ¡ÆC Windows version 3.0
Storage temp. -40... +85 ¡ÆC
Battery type Lithium battery
Dimensions 131x72x68 mm
Weight 320 g
Warranty 2 years
