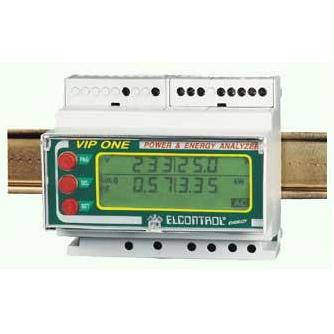

VIP ONE ÆdzÚÇü ´Ü»ó Àü·Â ºÐ¼®±â

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

¡¡


TOP PERFORMANCE IN A SMALL PLACE


• 17 Measuring functions in 105 mm of DIN rail (6 DIN modules):
- Volts Single-phase and Three-phase (rms), Amps Single-phase and
Three-phase (rms), P.F. cos©ª Single-phase and Three-phase, W Single-phase and Three-phase, var Single-phase and Three-phase, Va Single-phase and Three-phase, Hz.
- Energy counters kWh, kvarh, or import/export kWh, kvarh (kWh, KVAh selecting STD2).
- Storage of average, apparent and active power peaks.
- True Rms measurements from 200 mW(7,5V 23mA) to 999 GW (999999 V, 999999 A).
- Unbalanced three-phase systems.
• LCD Display
• Simple and easy to install and use.
• Fully programmable in the field by means of the keyboard.
• Signal outputs: available in a number of versions and with various configurations for expansion of VIP ONE functions up to industrial control level.

POWER MEASUREMENTS WHERE AND HOW YOU WANT THEM


• WHERE: Installation in any modular panel
• HOW: The measurements give a full view of electrical consumption including storage of power peaks and consumption (Maximum demand of Active Power).
• High accuracy (class 1 IEC1036)
• Measures with external VT (single value programmable by keyboard up to 999999 V) single-phase or balanced three-phase configuration.
• VIP ONE allows the use of a voltmetric transformer with secondary 57.5, 63.5, 100, 115, 120, 173, 190, 200, 220V.
• Measures with external CT (primary value programmable by keyboard up to 999999 V) or directly through internal TA up to 5A max. All the models are available with 30A current input.
• VIP ONE allows the use of amperometric transformers with secondary 1, 2, 2.5, 5 A.
• Average KVA: integration times of 1', 2', 5', 10', 15', 20', 30', 60'.
• Average KW: integration times of 1', 2', 5', 10', 15', 20', 30', 60'.

MODELS AVAILABLE


VIP ONE, VIP ONE 485
Standard model for SINGLE-PHASE or BALANCED THREE-PHASE systems

For direct measurements up to 5A, 550V, or with external CT, PT up to 999999 A, 999999 V max.
All the models are available with 30A current input.
Measures and displays Volts, Amps, W, P.F. cos©ª, var, VA, Hz, ¡¾kwh, ¡¾kvarh, kVAh, VA Peak, W Peak, Average kW, Average kVA, Average kvar, replacing 17 instruments and using the space and connections of just one.
LV, MV, HV measurements with single-phase or balanced three-phase insertion.
4-quadrant energy counters kWh, kvarh Import/Export.
Free selection of transformers.
Protection password of SET-UP pages and reset of energy counters of power peaks.
The 485 version is equipped with a RS485 serial output.
Possibility of automatic transmission type "ONE WAY" every second.
Protocol compatible with the one of VIP-OF (SHORT RS422) model.

VIP ONE RPQS, VIP ONE RPQS 485
In addition to the measuring function, they are equipped with pulse output for INDUSTRIAL MONITORING

2 SOLID STATE RELAY OUTPUTS with pulse frequency proportional to 2 out of the P (P+ or P- with COG4 option), Q (Q+ inductive or Q- capacitive), S (active, reactive, apparent) powers selection by keyboard.
In addition to the measuring function it is equipped with 2 solid state relay outputs, volt-free contacts (280VAC rms max. 100mA max.). They supply pulses with frequency proportional to the power measured.
A simple display menu and SELECT, SET push-buttons allow selecting 2 out of powers: active (P, P+ or P- with COG4 option selected), reactive (positive Q+ inductive, negative Q- capacitive), apparent (S) and different output frequencies according to requirements:
Min. 1 pulse= 1 MWh (Mvarh) (MVAh)
Max. 999 pulses= 1 Wh (varh) (VAh)
• RPQ (P+ or P- with COG4 option, Q+ or Q-) selection: supplies pulses proportional to the active energy (P=W) and reactive (Q=var) for measurements of active energy (kWh) and reactive (kvarh).
• RPS (P+ or P-) selection: supplies pulses proportional to the active energy (P=W) and apparent (S=VA) for measurements of active energy (kWh) and apparent (kVAh).
• RSQ (Q+ or Q-) selection: supplies pulses proportional to the apparent energy (S=VA) and reactive (Q=var) for measurements of apparent energy (kVah) and reactive (kvarh).
In the RPQS-485 version it is possible a remote control (by PC) of 2 loads.

VIP ONE ALM, VIP ONE ALM 485
In addition to the RPQS functions, they are are equipped with relay output for ALARMS

MINIMUM and MAXIMUM alarms on any 2 measurements chosen by the user from 27 of those displayed, with selection of the ON and OFF delay time (from 0 to 999 seconds) and of the MINIMUM and MAXIMUM threshold hysteresis (from 0 to 17.5% in steps of 2.5%) for each of the two relays which can be connected to the alarms.
The VIP ONE ALM-485 also has all the functions of the VIP ONE RPQS-485.
