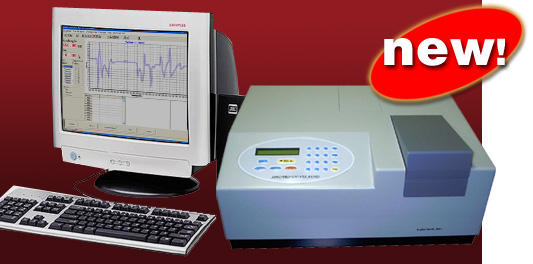

UV-2602 Spectro UV-Vis Auto Spectrophotometer






Spectro UV-Vis Auto
Scanning SpectrophotometerModel UV-2602


Spectro UV-Vis Auto  is Labomed's latest in single beam UV-Vis Spectroscopy, with its seamless integration with any PC; makes managing data easy. The new  2 way communication  system allows  the user, to give instructions right from your computer and gives you the ability to print and  record results in an easy to use interface. A 4nm bandwidth  gives you the accuracy needed in today's laboratories and its auto adjustment feature makes it easy to work with, providing more answers to scientific problems in less time. Spectro UV-Vis Auto  can be used in medical labs, biochemistry, petrochemistry, DNA tests, agriculture, educational, research and analytical labs. In addition, kinetic testing is possible  by an optional sipper (electro thermal) system.
Software is included.
The software gives you the ability to control the spectrophotometer's operations by PC. In addition to saving data, the Spectro's software can save parameters, set wavelengths and give you automatic processing of concentration. Windows ¢â 95/98 compatible.

Features
Top of the Page
Automatic 8 Cell holder by microprocessor.

Auto A/T/C.

Auto Zero.

Auto Wavelength.

Auto Scanning by PC.

Auto Switching Deuterium and Tungsten lamps.

2 way computer communication.

RS 232 computer interface.

2 nm bandwidth.

Wide continuous wavelength.

Easy to change lamp.

USA/FDA licensed.

Accessories
Top of the Page
8 square optical cells 10mm.

2 square quartz cells 10 mm with lid.

Dust cover.

Computer link cable.

Instruction manual.

Power cable.

Optional:   Peltier kinetic system
 Optional:   Sipper Flow Through system

Technical Specifications
Top of the Page


Wavelength range:
200 to 1100 nm.
Wavelength accuracy:
¡¾0.5 nm.
Wavelength Repeatability:
<_0.3nm
Spectral Bandwidth:
2 nm
Straylight:
<_ 0.3% T. (220nm, 340nm, NaI)
Transmittance Range:
0.0~200.0%T.
Absorptivity Range:
-0.301~4.000A.
Concentration Range:
0~9.999C.
Transmittance accuracy:
0.5% T.
Transmittance repeatability:
<_ 0.2% T
Baseline Flatness:
¡¾0.005A
Noise:
100%noise<_0.3%T 0% noise<_0.2%T
Stability:
Light current: <_0.5%T/3min Dark Current: <_0.2%T/3min
Light Source:
2000hr. Tungsten, Halogen and Deuterium Lamp.
Detector:
Photodiode
Power:
AC220V/110V. ¡¾10%, 50/60Hz¡¾1Hz
Software:
Labomed Inc. Software (Included).  for   Windows: 98, 2000 and XP.
Cell holder:
Automatic 8 cell holder.
Display:
LCD.
Keypad:
Soft key.
Printer:
External (Optional).
