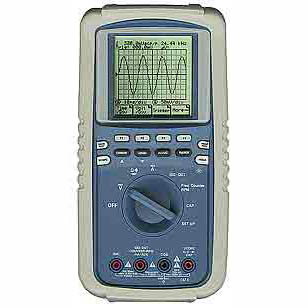

EH381285 5MHz Handheld DMM/Oscilloscope kit

제조사 : EXTECH
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Oscilloscope Functions
  • 160 x 160 pixel high density graphical display with EL backlight
  • DC to 5MHz bandwidth and 25MSPS sampling rate
  • Vertical sensitivity of 10mV to 200V per division with 14 divisions displayed
  • Single channel with 1Mohm input impedance
  • Horizontal sweep rate of 125nS to 2S per divisions with 23 divisions
  • Adjustable trigger level and slope
  • Single shot mode with waveform expansion or compression
  • Cursor function measures time or voltage two point differences on a waveform
General Functions
  • Store up to 15 screens or text displays
  • Auto power off
  • RS-232 PC interface with Windows® software
  • Complete with protective holster, built-in stand, Windows® 95/98 compatible software, RS-232 cable, 6 AA batteries, fuses, test leads, alligator clips
  • Optional rechargeable NiCad battery pack & AC adaptor/recharger recommended
MultiMeter Functions
  • 4000 count dual display with analog bargraph
  • True RMS AC Voltage and Current
  • Functions include dBm, Diode and Continuity
  • Max/Min/Average with time stamping and graphical plot
  • Auxiliary feature allows for direct temperature, humidity or high current displays using external dmm adaptors
  • High/Low comparator feature in the voltage, resistance or auxiliary functions
  • Frequency Counter function with simultaneous frequency, period and rpm display
  • 5V square wave output is adjustable (2.5Hz to 78kHz)
  • Automotive rpm, %duty cycle, dwell and ms pulsewidth displays
  • Graphical logic analyzer function
SPECIFICATIONS

Ranges

 Max. Resolution Basic Accuracy (%rdg + digits)
DC Voltage 400mV to 1,000V 0.1mV ±(0.3% + 10d)
AC Voltage (TRMS) 400mV to 700V 0.1mV ±(0.75% + 10d)
DC Current 400mA to 20A 10μA ±(1.2% + 10d)
AC Current (TRMS) 400mA to 20A 10μA ±(1.2% + 10d)
Resistance (Ω) 400Ω to 40MΩ 0.1Ω ±(0.5% + 10d)
Capacitance 40nF to 100μF 1pF ±2.0%
Frequency 1Hz to 5MHz 0.1Hz ±0.1%
Signal Output 2.5Hz to 78kHz 1Hz
Power 6 x AA batteries, rechargeable batteries or AC adaptor
Dimensions/Weight 4.2 x 8.3 x 2.2" (107 x 220 x 55mm)/1.77lb (800g)
Catalog No. Description Price
EH381285 5MHz Handheld DMM/Oscilloscope kit 732,564
EH381279 NiCad Batteries & 117VAC Charger 89,964
EH381299 Vinyl pouch carrying case with shoulder strap 44,064
EH381277 Temperature Adapter 71,604
EH445603 Humidity Adapter 310,590
