A143-002 UV CURING CHAMBER 365NM

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

The compact and low cost UV Curing Chamber 365nm features microprocessor technology

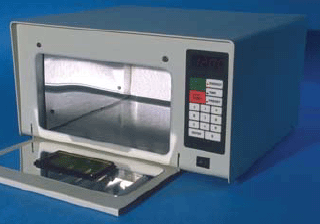

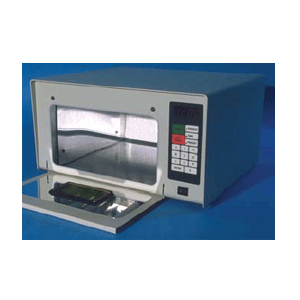

UV CURING CHAMBER 365NM

The compact and low cost UV Curing Chamber 365nm features microprocessor technology and a unique photo-feedback system which measures and controls UV output and ensures maximum energy efficiency. The end result is the freedom to control accuracy on a repeatable, reliable basis.

Measuring only 8.75" x 13.75" x 15.75", the 5 lamp UV Curing Chamber 365nm is smaller and therefore takes up less shelf space than any other on the market. It provides simple preset manual controls via a touch responsive keypad. The UV Curing Chamber 365nm is easy to maintain, as well. Factory calibrated, 115V/60Hz. Also available in 254nm model.

EXTERIOR DIMENSIONS: INTERIOR CHAMBER DIMENSIONS:
Height: 8.75" (22.2 cm) Height: 5" (12.7 cm)
Depth: 13.75" (34.9 cm) Depth: 11.81" (30 cm)
Width: 15.75" (40.0 cm) Width: 9.84" (25.4 cm)

FEATURES:
¡Ü Microprocessor Controlled/ UV Sensor Feedback System ¡Ü Internal Safety Interlock
¡Ü Multiple Set Functions:
    Preset UV Energy Exposure
    Preset UV Time Energy
    You set UV Energy Exposure
    You set UV Time Exposure
¡Ü Large LED Readout
¡Ü Tactile Membrane Switch Keypad
¡Ü UV Blocking Viewing Window
¡Ü Large Interior UV Exposure Chamber
¡Ü Dual Safety Fused
¡Ü Maximum UV Energy Setting of 999,900 mJ/cm2 ¡Ü Removable Power Cord
¡Ü Maximum UV Time Setting of 999.9 minutes
  ( this equates to 20mJ/cm2 in 400 seconds)
¡Ü Laydown Type Door

NOTE:
THIS LOW INTENSITY CURING CHAMBER IS NOT RECOMMENDED FOR CURING PIGMENTED INKS.

Part Number Description Units
A143-002 UV CHAMBER 365NM EACH
