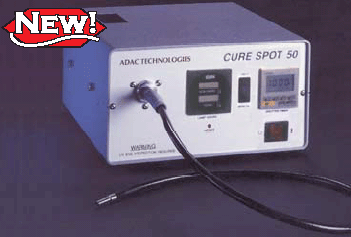

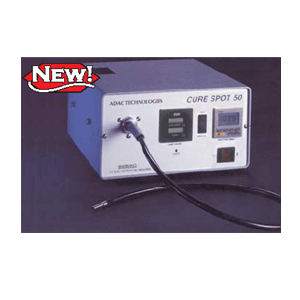

Considered the industry’s economical work-horse, high efficiency is the
hallmark of the CURE SPOT™ 50 UV spot light. CURE SPOT™ 50 maximizes UV
output and minimizes IR for quick, excellent surface curing, while reducing
the risk of component overheating. It can be used in manual applications
or mounted for automated processes. The perfect unit for medical disposable
devices, electronic assembly and other industrial spot curing applications.
BENEFITS:
● Digital shutter timer can be activated manually
by footswitch or by PLC for greater process flexibility.
● Pre-focused lamp reflector insures maximum output
every lamp change. Can be changed in approximately one minute.
● Low maintenance and 4,000 hour bulb life results
in minimal downtime and higher throughput.
● Thermally controlled, dual fan cooling/filtering
system insures proper lamp temperature and keeps dust out of unit.
● Proprietary dichroic reflector coating, in combination
with additional optical filter, provides maximum UV output with minimum
heat for greater flexibility in processing and reduced risk of damaging
adhesives or parts.
FEATURES:
● Pre-focused, high quality, 100% tested bulb
● 2,000 hour bulb warranty; up to 4,000 hour
life expectancy
● Isolated lamp chamber for temperature control
& intensity lifetime options
● Visual lamp indicator
● Lightguide locking mechanism
● Durable, cleanroom ready
● Digital LCD timer
SPECIFICATIONS:
● UV Output:
3000+mW/cm2 at 365nm
● Power Requirements:
115V, 60Hz/ 230V, 50Hz
● Power Supply:
50W linear
● Lamp:
50W short arc Mercury pre-focused in reflector
● Reflector:
Ellipitical glass dichroic coating to reflect
UV, eliminates IR
● Shutter Timer:
Digital LCD, standard single-shot count down;
other timer programs are available
● Shutter Activation:
Remote foot switch or user-supplied switch
● Cooling:
Filtered, dual-fan arrangement, thermally controlled
to maintain proper lamp temperature
● Hour Meter:
Digital LCD
● Housing Dimensions:
12.0" x 11.5" x 6.5" (30.56
cm x 29.2 cm x 16.5 cm)
● Weight:
21 lbs (9.5 kg)
NOTE: Unit not sold with
liquid light guide. For a list of available light guides, go to the web.
Part Number
Description
Units
A121-031
CURE SPOT™ 50
EACH
