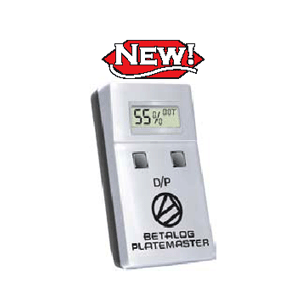

The Betalog Platemaster is a unique black and white reflection densitometer
PLATEMASTER DP


The Betalog Platemaster is a unique black and white reflection densitometer with some very special features. Measure dot area and density of any lithographic plate regardless of color, contrast, or graining. An absolute necessity in calibrating any computer to plate system. Perfect for photos, proofs, and press sheets too.


This unique ability allows you to verify tints and halftones on plate before going to press, saving time and money. Isolate and correct platemaking dot gain from press dot gain. Portable, battery-powered, and easy to use; the perfect tool for prep room, plate room, and pressroom. Measure stochastic and conventional halftones on diazo, photopolymer, waterless, and direct-image silver plates with ease and accuracy.
High accuracy is achieved with all types of plates regardless of image or background color. Plates with highly visible images as well as those with a barely visible image can be read to an accuracy of one percent dot value. The unique optical system utilizes a 90¨¬ vertical illumination source and a 360¨¬ annular ring pick up. Errors due to plate graining and directional coating effects are eliminated.

The Betalog Platemaster is supplied with a serial interface. Optional data cables with DB-9 or mini-DIN8 connectors are available for use with an optional printer or for direct connection to a computer for data collection and analysis.

Part Number Description Units
M003-008 PLATEMASTER DP EACH
