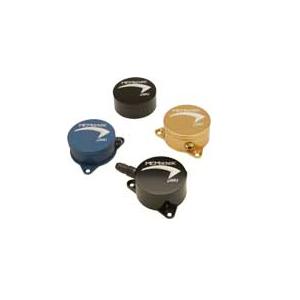

µIMU - Micro Inertial Measurement Unit
The µIMU provides serial digital outputs of triaxial acceleration, rate of turn (gyro) and triaxial magnetic field data. The IMU acquires its data from reliable MEMS sensors housed within the ultra rugged aluminum housing. Digital outputs can be configured to RS232, RS485, RS422, SPI or I2C protocols. Custom algorithms provide high performance, temperature compensated, triaxial inertial data in real time. The µIMU is available in a custom package measuring 2.2 in. diameter ¡¿ 0.8 in. height. Front and back mounting options are available.



µIMU
Ruggedized Processor-Based Inertial Measurement Unit. Available now

µIMU Datasheet


We offer measurement products to serve a variety of applications and needs.

  Triaxial (x, y, z) Measurement
TriRate yes      yes   none
AccelRate3D yes yes   yes   none
MAG3 yes yes yes yes   none
µIMU yes yes yes   RS422 temperature & alignment
nIMU yes yes yes   RS422
I2C
temperature & alignment
Bluetooth yes yes yes   wireless/bluetooth temperature & alignment
