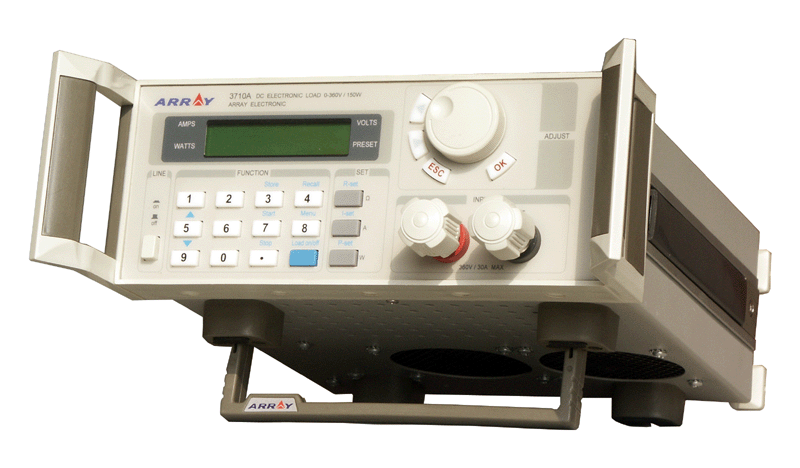

KOR3700 ÇÁ·Î±×·¡¸Óºí Àü¾Ð/Àü·ù/Àü·Â ½ÅÈ£ ¹ß»ý±â

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â







3710A 0-360V/150W

3711A 0-360V/300W

¼Ò°³£º
Array 3700 series ÀüÀÚ ½ÅÈ£ ¹ß»ý±â´Â ÀÔ·ÂÀÌ 1°³ÀÎ ÇÁ·Î±×·¥ DC ÀüÀÚ ¹ß»ý±â·Î ¹åµ¥¸® ½ÃÇè °ú DC Àü¿ø °ø±Þ±â·Î »ç¿ëÇÑ´Ù.  ±ÕÀÏÇÑ Àü·ù ¸ðµå, ±ÕÀÏÇÑ ÀúÇ× ¸ðµå, ±ÕÀÏÇÑ Àü·Â ¸ðµå ¸¦ ¹ß»ýÇÑ´Ù.
¡¡
Backlight LCD, ¼ýÀÚ Å°º¸µå ȸÀü ³ëºê ´Â 10´Ü ÇÁ·Î±×·¥À» ½±°Ô Á¶ÀÛ È° ¼ö ÀÖ´Ù.  ÄÄÇ»ÅÍ·Î Á¶ÀýÀÌ °¡´É Çϸç ÀüÀÚ Á¦Ç° µðÀÚÀÎ, ½ÃÇè °ú ¸¹Àº Á¦Ç°ÀÇ »ý»ê¿¡ ²À ÇÊ¿äÇÑ Á¦Ç°ÀÌ´Ù.
¡¡
¡¡
Ư¡£º
¡¡¹é¶óÀÌÆ® LCD Ç¥½Ã
¡¡°íÇØ»óµµ ÃøÁ¤
¡¡CC/CP/CR ¸ðµå
¡¡¼ýÀÚ Å° ¹× ·ÎŸ¸® ³ëºê
¡¡´Ù±â´É ¸Þ´º
¡¡°úÀü¾Ð / °úÀü·ù/ °úÀü·Â/ °ú¿Âµµ/ ¿ª Àü±Ø ¹æÁö ±â´É
¡¡10 ´Ü ÇÁ·Î±×·¥
¡¡ÄÄÇ»ÅÍ·Î Á¶Á¤ °¡´É
¡¡RS232 ·Î ¿¬°á °¡´É
¡¡

¡¡

¡¡

»ç ¾ç£º

Type

3710A

3711A

ÀÔ·Â ¼ö

1

1

ÀÔ·Â Àü¾Ð

0~360V DC

0~360V DC

ÀÔ·Â Àü·ù

0~30A DC

0~30A DC

ÀÔ·Â Àü·Â

0~150W

0~300W

Àü¾Ð Á¤¹Ðµµ

0.000~3.999V£º0.2%+3mV

0.000~3.999V£º0.2%+3mV

4.00~35.99V£º0.2%+30mV

4.00~35.99V£º0.2%+30mV

36.0~360.0V£º0.2%+300mV

36.0~360.0V£º0.2%+300mV

Àü·ù Á¤¹Ðµµ

0.000~2.999A£º0.2%+3mA

0.000~2.999A£º0.2%+3mA

3.00~30.00A£º0.2%+30mA

3.00~30.00A£º0.2%+30mA

ÃÖ¼Ò ºÐÇØ´É

Voltage 1mV, Àü·ù 1mA

Voltage 1mV, Àü·ù 1mA

ÃÖÀú Conductive ÀúÇ×

<0.08¥Ø</div>

<0.08¥Ø</div>

Ripple

<10mVpp</div>

<10mVpp</div>

Interface

RS232/RS485/USB*

¹æÁö ±â´É

°úÀü¾Ð / °úÀü·ù / °úÀü·Â / °ú¿Âµµ / Àü±Ø ¿ªÀü

ÇÁ·Î±×·¥ ¸Þ¸ð¸®

10 ´Ü ÇÁ·Î±×·¥, EEPROM

AC Àü¿ø

110V/220V AC +/-15%, 47~63Hz

ÀÛµ¿ ȯ°æ

0~50¡É, 80% RH

¼ÒÇÁÆ®¿þ¾î

ÀüÀÚ ºÎÇÏ ¼ÒÇÁÆ®¿þ¾î, ActiveX and DLL tools for VB,

VC++, DELPHI, LABVIEW

¹«°Ô

5.0Kg

±Ô°Ý

212.6mm W x 88.1mm H x 250mm D

Ç¥ÁØ ¾Ç¼¼»ç¸®

»ç¿ëÀÚ ¼³¸í¼­, AC ÄÉÀ̺í, handle bars, ¼ÒÇÁÆ®¿þ¾î CD

¿É¼Ç ¾Ç¼¼»ç¸®

RS232 ¾îµªÅÍ, RS485 ¾îµªÅÍ, USB ¾îµªÅÍ, Mounting rack







3710A 0-360V/150W

3711A 0-360V/300W

Introduction£º
Array 3700 series electronic load is a single input programmable DC electronic load. It provides a convenient
way to test batteries and DC power supplies. It offers constant current mode, constant resistance mode and
constant power mode. The backlight LCD, numerical keypad and rotary knob make it much easier to use. Up to 10
steps program can be stored.Controlled by PC is also available. It is an essential instrument for design,
test and manufacture of many suitable products.
Features£º
¡¡LCD display with backlight
¡¡High resolution measurement
¡¡CC/CP/CR mode
¡¡Number keypad and rotary knob
¡¡Multifunction menu
¡¡Over voltage / over current / over power / over temperature / polarity reversion protection
¡¡10 steps program
¡¡Can be controlled by PC
¡¡Can be connected in parallel
¡¡

¡¡

¡¡

Specifications£º

Type

3710A

3711A

Number of inputs

1

1

Input voltage

0~360V DC

0~360V DC

Input current

0~30A DC

0~30A DC

Input power

0~150W

0~300W

Voltage accuracy

0.000~3.999V£º0.2%+3mV

0.000~3.999V£º0.2%+3mV

4.00~35.99V£º0.2%+30mV

4.00~35.99V£º0.2%+30mV

36.0~360.0V£º0.2%+300mV

36.0~360.0V£º0.2%+300mV

Current accuracy

0.000~2.999A£º0.2%+3mA

0.000~2.999A£º0.2%+3mA

3.00~30.00A£º0.2%+30mA

3.00~30.00A£º0.2%+30mA

Minimum resolution

Voltage 1mV, Current 1mA

Voltage 1mV, Current 1mA

Lowest Conductive Resistance

<0.08¥Ø</div>

<0.08¥Ø</div>

Ripple

<10mVpp</div>

<10mVpp</div>

Interface

RS232/RS485/USB*

Protection

Over voltage / over current / over power / over temperature / polarity-reversion

Program Memory

10 steps program, EEPROM

AC Input

110V/220V AC +/-15%, 47~63Hz

Operating environment

0~50¡É, 80% RH

Software

Electronic load software, ActiveX and DLL tools for VB,

VC++, DELPHI, LABVIEW

Weight

5.0Kg

Dimensions

212.6mm W x 88.1mm H x 250mm D

Standard Accessories

User¡¯s manual, AC cable, handle bars, software CD

Optional Accessories

RS232 adapter, RS485 adapter, USB adapter, Mounting rack
