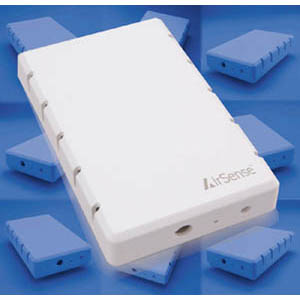

M307 CO2 ½ë¼­ (mA Ãâ·Â)

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

AirSense¢â Model 307

CO2 Monitor

AirSense M307 Installation Instructions



AirSense M307 Brochure



The all new AirSense M307 CO2 Monitor

  • Most Affordable CO2 Monitor yet!

  • Optional 4-20mA Output

  • Easy to Use Single Touch CO2 Calibration

  • Rugged and Discreet Housing

Digital Control Systems' AirSense M307 carbon dioxide monitor sets a new standard of affordability and user-friendly installation and operation. The AirSense¢â M307 is DCS's most affordable model yet.  A unique metal-chromated CO2 sensor housing allows the AirSense Model 307 to perform flawlessly in the most demanding HVAC environment, and the M307's ease of installation and classic finish design are specifically geared to the cost-conscious HVAC contractor's needs.





Technicians in the field can now easily calibrate the AirSense¢â M307 CO2 Monitor simply by removing the port cap, plugging in the 2000ppm cal gas, and pressing a single button: a green LED indicates that the patent-pending one-step calibration is complete.





The AirSense¢â M307 CO2 Meter can be installed on a standard electrical junction box in new construction projects or it can be directly wall mounted. Installation is now easier than ever! The M307 CO2 Monitor can be installed with just two screws and none of the sensitive electronics are exposed during installation, eliminating costly accidents. Another unique feature of the AirSense M307 is that it is designed so components won't be harmed if the unit is accidentally wired incorrectly.





Single Touch Smart Calibration

The AirSense¢â Model 307's automated single gas verification makes field calibration a snap, and its superior design means significantly longer intervals between calibration. Technicians in the field can now easily calibrate the M307 CO2 monitor simply by removing the port cap, plugging in the 2000 ppm cal gas (available from factory), and pressing the calibration button (illustrated on front). An easy to read green LED will blink once the process is complete.
¡¡


Easy to install and support
Measurement output is via a 0 to 10 volt interface. An optional 4-20mA current loop feature is also available (see table). The new mounting design, easy calibration, and cost savings you can achieve with the M307 make for an easy decision. Breathe Easier with AirSense¢â CO2 Monitors.



Specifications for the AirSense¢â M307 CO2 Monitor



Operating Principle

Non-dispersive infrared (NDIR)

Gas sampling method

Diffusion Only

Measurement Range

0 - 2000 ppm CO2

Meaurement accuracy

¡¾ 5% of reading or ¡¾ 75 ppm, whichever is greater

Repeatability

¡¾ 20 ppm

Recommended calibration interval

5 Years

Warm up time

Less than 1 minute

Operating temperature range

0 to 50 ¡Æ Celsius

Operating humidity range

5 - 95% RH, (non condensing)

Storage temperature

-30 to + 60 ¡Æ C

Power requirements

18 - 28 VRMS AC, 18 - 30 VDC

Power consumption

Less than 1 watt

Calibration Procedure

Single Button

Case dimensions

4.5" x 2.8" x .9"

Voltage output (linear)

0 - 10 VDC full scale standard.

Range field adjustable from 1-10 VDC

Current output (linear)

4 - 20 mA (RLOOP: 400 W maximum)

Warm up time

Less than 1 minute

Operating life expectancy

10 years typical

Warranty

One year, parts and labor through repair or exchange
