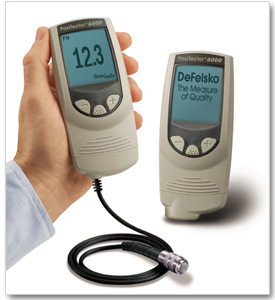

Positector 6000FNS1 ÄÚÆõβ² ÃøÁ¤±â

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

http://www.korins.kr/maker/davis/v73/1043.pdf
Àç°í : 1´ë
Àû¿Ü¼± ÇÁ¸°ÅÍ Àç°í 1´ë : 500,000¿ø
Overview: Rugged, fully electronic coating thickness gages use magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals, accurately and quickly.

  • Menu-driven user interface with multilingual support including: English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
  • Ready to measure-no calibration adjustment required for most applications
  • One-Handed menu navigation
  • Bi-color indicator light-ideal in a noisy environment
  • RESET feature instantly restores factory settings



  • Solvent, acid, oil, water and dust resistant-meets or exceeds IP5X ingress protection
  • Wear-resistant probe tip
  • Thick, impact and scratch resistant Lexan¢ç display suitable for harsh environments
  • Protective rubber holster with quick-release belt clip and probe storage
  • Two (2) year warranty



  • Certificate of Calibration showing traceability to NIST included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for use on applications that require greater precision
  • Conforms to national and international standards including ISO and ASTM



  • Multiple calibration adjustment options including 1 point, 2 point, known thickness and average zero
  • Calibration Lock
  • SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels (memory (3) gages only)
  • Selectable display languages
  • Flip Display for right-side-up viewing
  • Backlit display for dim or dark environments
  • Mils/Microns/mm switchable
  • Extended cables available (up to 250 ft/75 m) for remote measuring
  • All PosiTector 6000 Gages are available in your choice of Basic, Standard and Memory configurations.

PosiTector 6000 coating thickness gages, gauge use magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals.



Ideal for measuring coating thickness of paint, plating,  powder coating and more on all metal substrates.
¡¡



Coating Thickness Gage measures  film thickness of coating applied to all metal substrates.
¡¡
Rugged Features: The PosiTector 6000 was designed for use in harsh industrial environments. Now with an impact-resistant Lexan¢ç display and shock-absorbing rubber holster the PosiTector 6000 is more rugged and durable than ever before.

¡¡
Gage Selection

Easy steps to select a gage...

 Select substrate
    F -
for ferrous metals (steel and cast iron)
    N - for non-ferrous metals (aluminum, copper, brass, etc.)
    FN - for all metal substrates - Gage automatically recognizes the substrate and takes a measurement

 Select from a variety of measurement ranges and probe styles


Built-in probes               Separate Probes


 Select Basic (1), Standard (2) or Memory (3) model

PosiTector 6000 - Feature Comparison Chart
Basic
(1)
Standard (2)
Memory (3)
  No Calibration required for most applications
  One handed menu navigation
  Average Zero Feature; ideal for zeroing on rough substrates
  Mils/Microns/MM switchable
  Adjustable to a known thickness
  Thick impact resistant Lexan¢ç display
  Flip Display enables right side up viewing whether the gage is in your hand or on a work table
  Backlit display for dim or dark environments
  Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits
-
  Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
-
  High Resolution mode increases the displayed resolution for use on applications that require greater precision
-
  Reading Storage Capacity
-
250 in one group
10,000 in up to 1000 groups
  SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels
-
-
  Built in clock to date and time stamp each stored measurement
-
-
  Multiple stored calibration adjustments for measuring on a variety of substrate conditions
-
-
  Serial RS232 communication for downloading readings as they are taken to a PC or Data Collector (requires optional Serial Output Cable)
-
-
  PosiSoft downloading and charting software (includes USB cable)
-
optional
  Built-in IR port for printing to an optional portable printer
-
  Protective rubber holster with belt clip
  Nylon carry case with shoulder strap
  Certificate of Calibration showing traceability to NIST
  Two (2) Year Warranty


All gages come complete with precision plastic shims, protective rubber holster with belt clip, 3 AAA batteries, instructions, wrist strap (built-in style only), nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, two (2) year warranty.



Probe Details: Several probe configurations are available for measuring a wide variety of coating thickness application. Please contact us

Selection Note:

F - for ferrous metals (Example: FS)
N - for non-ferrous metals (Example: PosiTector 6000 NS)
FN - for all metal substrates (Example: PosiTector 6000 FNS)

 Built-in probes

Built-in Probe
Gage Models:
F1, F2, F3
N1, N2, N3
FN1, FN2, FN3
FT1, FT2, FT3
Range:
0 - 60 mils 0 -250 mils
0 - 1500 um 0 - 6 mm
Accuracy*:
+ (0.05 mils + 1%)  0 - 2 mils
   + (0.1 mils  +  1%)  > 2 mils
+ (0.5 mils + 1%)  0 - 100 mils
 + (0.5 mil + 3%) > 100 mils
+ (1 um + 1%)  0 - 50 um
 + (2 um + 1%)  > 50 um
 + (0.01 mm + 1%) 0 - 2.5 mm
+ (0.01 mm + 3%) > 2.5 mm
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.



 Separate Regular Probes

Regular
Probe Models:
FS
NS
FNS
NAS
FTS
Range:
0 - 60 mils 0 -25 mils 0 -250 mils
0 - 1500 um 0 - 625 mm 0 - 6 mm
Accuracy*:
+ (0.05 mils + 1%)  0 - 2 mils
   + (0.1 mils  +  1%)  > 2 mils
+ (0.02 mils + 1%)  0 - 4 mils
 + (0.1 mils + 3%)  > 4 mils
+ (0.5 mils + 1%)  0 - 100 mils
 + (0.5 mil + 3%) > 100 mils
+ (1 um + 1%)  0 - 50 um
 + (2 um + 1%)  > 50 um
+ (.5 um + 1%)  0 - 100 um
 + (2 um + 3%)  > 100 um

 + (0.01 mm + 1%) 0 - 2.5 mm
+ (0.01 mm + 3%) > 2.5 mm
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.



90 Regular
Probe Models:
FRS
NRS
FNRS
Range:
0 - 60 mils
0 - 1500 um
Accuracy*:
+ (0.05 mils + 1%)  0 - 2 mils
   + (0.1 mils  +  1%)  > 2 mils
+ (1 um + 1%)  0 - 50 um
 + (2 um + 1%)  > 50 um
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

 Separate Microprobes

0 Microprobe
Probe Models:
F0S
N0S
¡¡
Range:
0 - 25 mils
0 - 625 um
Accuracy*:
+ (0.02 mils + 1%)  0 - 4 mils
 + (0.1 mils + 3%)  > 4 mils
+ (.5 um + 1%)  0 - 100 um
 + (2 um + 3%)  > 100 um

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.



45 Microprobe
Probe Models:
F45S
N45S
¡¡
Range:
0 - 25 mils
0 - 625 um
Accuracy*:
+ (0.02 mils + 1%)  0 - 4 mils
 + (0.1 mils + 3%)  > 4 mils
+ (.5 um + 1%)  0 - 100 um
 + (2 um + 3%)  > 100 um

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.



90 Microprobe
Probe Models:
F90S
N90S
¡¡
Range:
0 - 25 mils
0 - 625 um
Accuracy*:
+ (0.02 mils + 1%)  0 - 4 mils
 + (0.1 mils + 3%)  > 4 mils
+ (.5 um + 1%)  0 - 100 um
 + (2 um + 3%)  > 100 um

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

 Separate High-Range Probes

High-Range
Probe Models:
FNTS
¡¡
FKS
NKS
Range:
0 -250 mils 0 -500 mils
0 - 6 mm 0 - 13 mm
Accuracy*:
+ (0.5 mils + 1%)  0 - 100 mils
 + (0.5 mil + 3%) > 100 mils
+ (1 mils + 3%)  0 - 500 mils
 + (0.02 mm + 3%) 0 - 13 mm
 + (0.01 mm + 1%) 0 - 2.5 mm
+ (0.01 mm + 3%) > 2.5 mm
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.



¡¡
ORDERING
CHART

Our most popular built-in and Regular separate probe models 90 Regular probe for tight spots Ideal for anodized aluminum Microprobes - Our smallest probes for small parts or hard-to-reach areas  Built-in and Separate probes for thick protective coatings; epoxy, rubber, intumescent fire proofing and more
Click Gage Image for
Probe Details
Coatings on FERROUS metals
(Steel & Cast Iron)
Basic
Standard
Memory

F1
F2
F3

FS1
FS2
FS3
FRS1
FRS2
FRS3
  F0S1
F0S2
F0S3
F45S1
F45S2
F45S3
¡¡
F90S1
F90S2
F90S3

FT1
FT2
FT3

FTS1
FTS2
FTS3
FKS1
FKS2
FKS3
Coatings on NON-FERROUS metals (Aluminum, Copper, etc.)  Basic
Standard
Memory
N1
N2
N3
NS1
NS2
NS3
NRS1
NRS2
NRS3
NAS1
NAS2
NAS3
NOS1
NOS2
NOS3
N45S1
N45S2
N45S3
N90S1
N90S2
N90S3
    NKS1
NKS2
NKS3
Combination
ALL METALS
Basic
Standard
Memory

FN1
FN2
FN3

FNS1
FNS2
FNS3
FNRS1
FNRS2
FNRS3
          FNTS1
FNTS2
FNTS3

Measuring
Range
0 - 60 mils 0 - 25 mils 0 - 250 mils 0 - 500 mils
0 - 1500 um 0 - 625 um 0 - 6 mm 0 - 13 mm
Accuracy** + (0.05 mils + 1%)  0 - 2 mils
   + (0.1 mils  +  1%)  > 2 mils
+ (0.02 mils + 1%)  0 - 4 mils
 + (0.1 mils + 3%)  > 4 mils
  +( 0.5 mils + 1%)
  0 - 100 mils
 +( 0.5 mils + 3%)
  > 100 mils
  + (1 mil + 3%)
0 - 500 mils
+ (1 um + 1%)  0 - 50 um
 + (2 um + 1%)  > 50 um
+(0.5 um + 1%)  0 - 100 um
 + (2 um + 3%)  > 100 um
 + (0.01 mm + 1%)  0 - 2.5 mm
 +( 0.01 mm + 3%)  > 2.5 mm
+ (0.02 mm + 3%)
0 -13 mm
Matching DeFelsko Calibration Standards CAL-S1
CAL-A1
CAL-S2
CAL-A2
CAL-P1 CAL-P5
  **Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

All gages come complete with precision plastic shims, protective rubber holster with belt clip, 3 AAA batteries, instructions, wrist strap (built-in style only), nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, two (2) year warranty.

Memory (3) gages also include PosiSoft Windows-based Analysis Software, USB cable.

Size: 146 x 64 x 31 mm (5.75" x 2.5" x 1.2")
Weight:
165 G (5.8 oz.) without batteries

Conforms to ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/ G12, BS3900-C5, SSPC-PA2 and others

Optional Accessories: A variety of accessories are available to help you get the most from your
PosiTector 6000 Coating Thickness Gage.
PosiSoft Analysis Software AC Power Cable
IR Wireless Portable Printer Serial Output Cable
Certified Thickness Standards Probe Fixture Stand

PosiSoft for Windows analysis software available for Standard (2) models, included with all Memory (3) models.
  • Allows entry of notes and annotations
  • Prints and displays basic charts and histograms
  • Exports to a document or spreadsheet
  • Includes USB cable
  • Free updates
