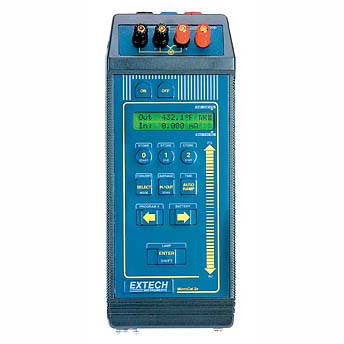

EH423950 MULTIFUNCTN CALIB SIMULT
|
|
Model 423950 |
- Simultaneously source and measure mA or V
- Source or measure 14 Thermocouples, 3 RTDs, mA, mV, V and ohms
- Two line backlit alpha-numeric LCD displays source (output) value and measured (input) value
- Memory locations for one simulation program
- Five binding posts for input and output signals
- High accuracy to 0.02% of reading
- Digital TTL output, optional bi-directional RS-232 interface/software
- Complete with rechargeable Ni-Cad batteries and AC adaptor/recharger
| SPECIFICATIONS FOR MODEL 423901
|
Range |
Resolution |
Accuracy % of reading |
| Channel 1 ( in / out) |
| J: |
-170 to 1300°C / -274 to 2192°F |
0.1°C/0.1°F |
±(0.02% +0.15°C or 0.27°F) |
| K: |
-120 to 1300°C / -184 to 2372°F |
0.1°C/0.1°F |
±(0.02% + 0.1°C or 0.18°F) |
| T: |
-120 to 400°C / -184 to 752°F |
0.1°C/0.1°F |
±(0.02% + 0.1°C or 0.18°F) |
| R: |
500 to 1700°C/ 932 to 3092°F |
0.1°C/0.1°F |
±(0.02% + 0.5°C or 0.9°F) |
| S: |
800 to 1760°C/ 1472 to 3200°F |
0.1°C/0.1°F |
±(0.02% + 0.5°C or 0.9°F) |
| Pt-100Ω: |
-200 to 600°C / -328 to 1112°F |
0.1°C/0.1°F |
±(0.02% + 0.15°C or 0.27°F) |
| Ω: |
0 to 400 (in) / 0 to 400 (out) |
0.01Ω |
±(0.02% + 38mΩ) in / ±(0.03% +78mΩ)out |
| mV: |
0 to 1000/ -18 to 100 |
0.1mV/ 0.01mV |
±(0.01% + 40μV/ 0.01% + 6μV) |
| V: |
0 to 10V |
1.0mV |
±(0.02% + 0.4mV) |
| mA: |
0 to 21mA |
0.001mA |
±(0.02% +0.5μA) |
| Channel 2 (in) |
| mA: |
0 to 22mA |
0.001mA |
±(0.02% + 1μA) |
| V: |
0 to 30V |
1.0mV |
±(0.02% + 1.2mV) |
| Channel 1/Channel 2 |
| Output / Input impedance(Channel 1): |
< 0.5Ω with max current of 0.5 mA / > 10MΩ |
| Input impedance (Channel 2): |
< 0.5Ω with max current of 0.5 mA / > 1MΩ |
| Shunt resistance (mA ranges): |
38Ω Channel 1 / 105Ω Channel 2 |
| Maximum resistance load: |
1000Ω @ 20mA |
| Scale Factor: |
zero & span programmable within ±10000 |
| (CH1)/±2000(CH2) |
| Maximum voltage input / current input: |
50V (5V RTD only) / 100mA (6mA RTD only) |
| Power Supply/Recharge Time: |
4 Ni-Cad rechargeable batteries/12hr @ 90% (meter off) |
| Call for full specifications on thermocouple types B, C, G, D, U, L, N, E, F and RTD types NI-100Ω, NI-120Ω |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EH423950 |
|
423950 |
|
MULTIFUNCTN CALIB SIMULT. SOURCE/MEA.117VAC |
|
Yes |
|
3,486,564 |
| EH423951 |
|
423951 |
|
Multifunction Calibrator, Simultaneous Source/Measure, 220VAC |
|
Yes |
|
3,670,164 |
| EH423923 |
|
423923 |
|
RS232 INTERFACE, CABLE W/ CALIBRATN SOFTWARE |
|
Yes |
|
365,364 | | |
