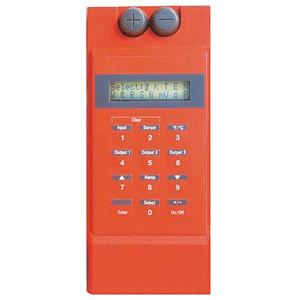

TH344001 Protable Temperature Calibrator

제조사 : DAVIS
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Features
  • Input or output millivolts or ohms
  • Calibration standard accuracy, typically 0.1°
  • 0.1° resolution
  • Three output memories
  • Ramping on all outputs battery or AC operation
  • °F / °C selection button
  • 2 year Warranty


The Portable Temperature Laboratory contains the Micromite II..plus the following for temperature calibration
  • J, K, T & E thermocouple material test leads
  • Two-wire copper lead for mV
  • Four-wire copper lead for 2, 3 or 4-wire RTD’s & ohms
  • Screwdrivers
  • Wire stripper
  • General purpose probe - for measuring air and liquid temperature to 475°F (246°C)
  • Surface probe - for measuring external temperature of hard surfaces
  • Air/gas probe - quick responding probe for measuring temperature of air or gas
  • Heavy duty needle probe - for measuring temperature of liquids, greases, semi-solid and other substances that require penetration by the probe. Good for temperatures to 550°F (288°C)
  • Quick-connect handle with coil cord for use with all probes included in the kit or any other Type K probe with a mini-plug termination

SPECIFICATIONS

Ranges

 J, K, T, E, N, W5/W26, Platinell ll, R, S and B thermocouples, and millivolts, 100Ω Platinum RTD (a=385) and Ω
Ambient Operating Temperature 32° to 131°F
Temperature Stability 15 PPM of reading/ °C
Input Impedance 100MΩ
Display 2 lines of 16 alphanumeric characters, 5x7 dot matrix LCD 2 updates/second
Power Supply 6 "AA" batteries or AC adapter
Size 8.6"H x 3.75"W x 2.38"D
Weight 28 oz. (including batteries)
 Consult Factory for full specifications
CAT NO. MODEL DEscRIPTION AVAIL PRICE
TH344001   CAL-MMII-I-N-Y   Micromite II Portable Temperature Calibrator   Yes   3,662,820



Includes 115VAC adapter, carrying case, cord leads, J, K, T, E, 2 & 4 wire copper, screwdriver, wire stripper, quick connect handle and 3 probe (air/gas, general purpose surface, HD needle tip)
TH344003   CAL-MMII-I-N-L   MICROMITE II W/115VAC ADAPTOR,   Yes   4,461,480



Includes 115VAC adapter, carrying case, cord leads, J, K, T, E, 2 & 4 wire copper, screwdriver, wire stripper, quick connect handle and 3 probes (air/gas, general purpose surface, HD needle tip)
