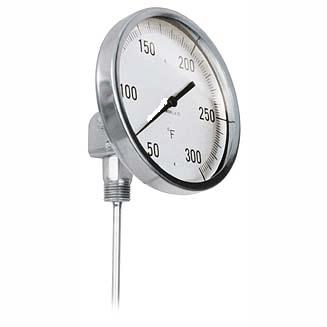

An unusual feature of this thermometer is that the head may be turned or tilted or any angle. Constructed of welded stainless steel, it is rust, corrosion and leak proof. The bimetal is dampened with silicone for minimum heat transfer.
Thermometers are made to order. Please be certain of your specifications. Credit cannot be given for returned instruments.
Features
Accuracy: ±1% of full scale.
Recalibration: External reset screw.
Stem: rated to 1000 psi. Use of a thermowell is recommended for higher pressure or for heavy duty use.
Rust and corrosion proof, leak proof or for heavy duty use.
The bimetal element will withstand a 50% over-range on instruments up to and including 500°F. A 10% over-range is permissible on higher temperature ranges. Under-ranging within the 50% limit on all ranges will not harm its accuracy.
RANGES & DIVISIONS
When ordering please specify temperature range
A) -40°F to 160°F
2 Degree Divisions
B) 0°F to 250°F
2 Degree Divisions
C) 50°F to 500°F
5 Degree Divisions
D) 200°F to 1000°F
10 Degree Divisions
E) -10°C to +70°C
1 Degree Divisions
F) 0°C to 150°C
1 Degree Divisions
G) 0°C to 300°C
2 Degree Divisions
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
PZ1561751
0.77
2 1/2 " Stem All Angle Thermometer
Yes
266,220
PZ1561761
0.77
4" Stem All Angle Thermometer
Yes
266,220
PZ1561771
0.77
6" Stem All Angle Thermometer
Yes
266,220
PZ1561781
0.77
9" Stem All Angle Thermometer
Yes
266,220
PZ1561791
0.77
12" Stem All Angle Thermometer
Yes
266,220
PZ156180
0.77
15" Stem All Angle Thermometer
Yes
302,940
PZ156181
0.77
18" Stem All Angle Thermometer
Yes
321,300
PZ156182
0.77
24" Stem All Angle Thermometer
Yes
339,660
PZ156183
0.77
30" Stem All Angle Thermometer
Yes
365,364
PZ156184
0.77
36" Stem All Angle Thermometer
Yes
403,920
