HLN-11A

Á¦Á¶»ç : Time
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

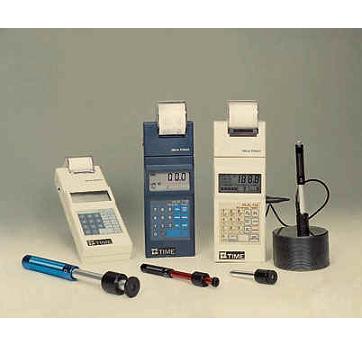

HARDNESS TESTER HLN-11

HLN-11

Brief

HLN-11 is an advanced hand-held hardness distinguished by its high accuracy, wide measuring range, and simplicity of operation. It is suitable for testing on various conditions and environments.

Typical Applications

  • In-situ testing of individual parts, or components in assembled machines
  • Mould surface of a die
  • Heavy components e.g. rolls for rolling mills, etc.
  • Quick analysis of pressure vessels, turbo-generator sets, etc.
  • Testing in a production line e.g. crank-shafts, cylinder blocks, etc.
  • Material identification

Functions Available

  • Display test results in all various hardness scales (HRB, HRC, HB, HV, HSD, HL)
  • Test in any angle, even up-side-down
  • Convert to Ultimate Tensile strength
  • Immediate cover between harness scales, and print-out of desired
  • Input of test number on date
  • Input print-out of material type, and test direction Print-out of test results via integral printer if needed
  • Battery low individual Protective carrying case complete with test block, supporting, cleaning brush, battery charger
  • Seven impact device available: D ,DC ,DL ,D+15 ,C ,E ,G

Technical Specification

  • Overall dimension: 270 x 86 x 47mm
  • Total weight: 650g(including impact device and printer)
  • Operating temperature: electronics: -10 to +45¡ÆC ; impact device:-20 to +120¡ÆC
  • Tolerance: ¡¾0.8%
  • U.T.S. Measuring range: 370-2000[10N/m]
