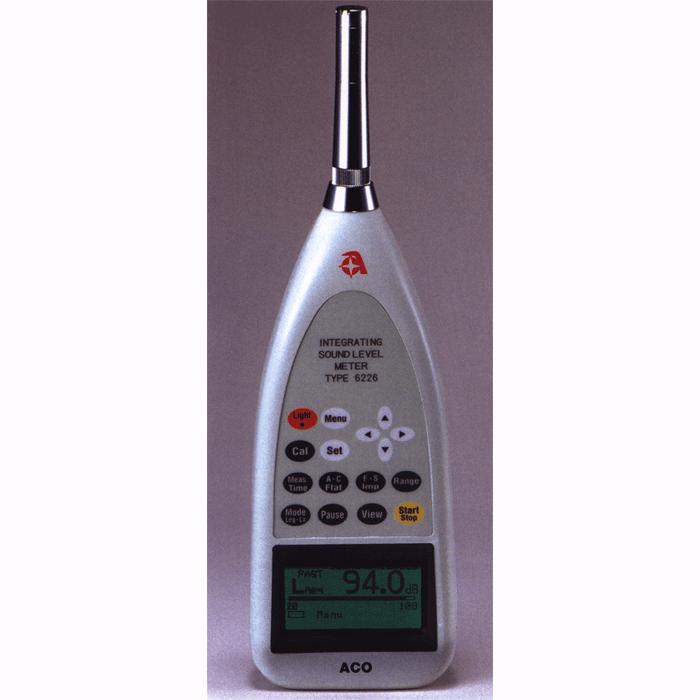

Aco 6226 ¼ÒÀ½°è

Á¦Á¶»ç : Aco
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â



Type 6224 6226



Applicable standards


Measurement Range
Integrating-averaging
Precision sound level meter

JIS C 1505, IEC 60651 Type1,
IEC 60804 Type1, IEC/CDV 61672-1 Class1


27~130dB (A)
38~130dB (C)
41~130dB (F)
Integrating-averaging
sound level meter


JIS C 1502, IEC 60651 Type2,
IEC 60804 Type2, IEC/CDV 61672-1Calss2


28~130dB (A)
33~130dB (C)
38~130dB (F)
Peak Level
50~140dB (A)
55~140dB (C)
60~140dB (F)

Measurement Frequency Range

Microphone
20Hz~20kHz (JIS range:20Hz~12.5kHz)

7146N
1/2 Electret condenser microphone
20Hz~8kHz

7052N
1/2 Electret condenser microphone
Level Range Control

Linearity Range
10dB 6steps

100dB
Response Fast, Slow, Impulse Fast, Slow
Frequency Weighting A, C, Flat
Measurement Parameters
Lp : Sound pressure level
Leq : Equivalent continuous A-weighted sound pressure level
Le : Sound exposure level
Lmax : Maximum sound level
Lmin : Minimum sound level
Lx : Percentile level (5values of free select)
Lpeak : Waveform peak hold (C weighting selectable)
Response Time For Constant
Input Signal
1s,3s,5s,10s,1min,5min,10min,15min,30min,1h,8h,24h, Manual
(Max. 199H59M59S)
Sampling Time 20.8 ¥ì s(Leq), 10ms(Lmax,Lmin)
Lx Sampling Time 100ms
Display
  Type
Digital display
Bar display
Warning
Battery
Liquid crystal and Back light (128¡¿64 points)
4 digits, Display Period : 1s
Display Period : 0.1s
Over : +10dB from upper limited scale   Under : -0.6dB from lower limited scale
4steps display
Memory Memorize the Sound pressure level or the Operation level (Approx. 15000 data)
Data Built-in (year/month/day/hour : minute : second)
Pause pause/data clear
Calibration Electric calibration with internal oscillator ( 1kHz Sine wave )
AC Output 1Vrms for full scale Output impedance:600§Ù, resistance:more than 10k§Ù
DC Output 2.5V for full scale, 0.25V/10dB Output impedance:50§Ù, resistance:more than 10k§Ù
I/O Terminal Interface:RS-232C Data:8bits, Stop:2bits, Parity:not,Baud rate:4800,9600,19200,bps
(direct output to printer, control and output data to computer
Battery Type
Life
Four 1.5V Alkaline cells IEC type LR6, Optional AC adapter
Alkaline dry cell : Approx.24hours (Manganese dry cell : Approx.11hours)
when Switch on a back light:Approx.1/3
Operating Temperature range Temperature : -10¡É~50¡É Humidity : 30%~90% (not condensing)
Dimensions 85 (W) ¡¿ 310 (H) ¡¿ 48 (D) 85 (W) ¡¿ 284 (H) ¡¿ 48 (D)
Weight Approx.370g

OPTIONAL ACCESSORIES ¿ëµµ
AC-1026 AC ¾Æ´äÅÍ
NA-0333 ¼ÒÀ½°èÀü¿ë»ï°¢´ë
BC-0046-2 ¿¬Àå ÄÉÀ̺í 2m
BC-0046-5 ¿¬Àå ÄÉÀ̺í 5m
BC-004610 ¿¬Àå ÄÉÀ̺í 10m
BC-0071 BNC ÇÉÄÚµå
2124A ÇǽºÅæÆù
2126 À½ÆÄ·¹º§±³Á¤±â
BC-0026 Ä¿³ØÅÍ
BC-0026-4 µ¥ÀÌÅÍ °ü¸®¼ÒÇÁÆ®¿þ¾î
BS-80TSL Àü¿ëÇÁ¸°ÅÍ RS-232 ÄÉÀ̺í
A12-25F-9F º¯ÇüÄ¿³ØÅÍ
AC-1016 ÇÁ¸°ÅÍ¿ë AC ¾Æ´äÅÍ
KDA-60 º¯Çü ¾Æ´äÅÍ(220~100V º¯Çü)
BS-80-15 ÇÁ¸°ÅÍ Àü¿ëÁö(Pack of 10)

Sound-level meter / Data management software
NA-0226-4

Software features


In addition, you can print out the following style list on A4 size paper.

ACO sound level meter / Data management software

100dB Frequency Weighting characteristic : Frequency Weighting: A   Time weighting : Fast
No. Meas. time Leq Le Min. Max. L05 L10 L50 L90 L95
1 2001/05/31 14:54:30 062.6  090.3  032.7  080.0  068.8  066.6  054.7  038.9  037.1
2 2001/05/31 15:04:29 062.7  090.4  034.0  082.1  068.6  066.1  056.0  039.5  037.3
3 2001/05/31 15:14:29 049.1  077.0  033.3  071.1  054.2  050.5  039.2  034.8  034.4
4 2001/05/31 15:24:29  044.5  072.4  032.8  064.8  051.0  048.1  037.1  034.2  033.8
5 2001/05/31 15:34:29  060.5  088.3  033.9  079.8  067.6  064.2  044.6  035.9  035.5
6 2001/05/31 15:44:29  063.6  091.4  034.1  086.6  069.2  059.1  045.2  036.0  035.4
7 2001/05/31 15:54:29  051.5  079.4  036.4  082.5  054.1  051.7  041.7  038.2  037.8
8 2001/05/31 16:04:29  060.0  087.7  036.0  080.4  066.2  059.2  044.5  037.2  036.9
9 2001/05/31 16:14:29  064.7  092.4  034.1  089.9  071.1  067.8  051.5  038.3  037.7
10 2001/05/31 16:24:29  058.8  086.5  032.9  080.6  064.4  059.9  049.0  038.5  036.3
11 2001/05/31 16:34:29   052.8  080.5  033.7  072.5  057.2  053.4  041.8  035.6  035.1
12 2001/05/31 16:44:29  047.8  075.7  032.7  068.6  053.5  051.3  040.6  034.7  031.0


A squeeze-bottle body anyone can handle.

"Noise." Though it is an everyday problem, only experts are engaged in noise level measurements. Is it possible to make noise measurement easy even for beginners... Our simple question has triggered off the creation of a compact, light and easy-to-handle sound level meter with an excellent cost/performance ratio


This is an integrating-averaging sound level meter appropriate for environmental noise measurements, equipped with the following measurement functions; equivalent continuous A-weighted sound pressure level (Leq), sound exposure level (LE), and percentile level (Lx).
It is easily operated to fulfill various functions from measuring the noise of traffic, aircraft and machinery to quality control and diverse tests.
Standard equipment includes an RS-232C interface, and connection to an outer CPU enables continuous operation

Measurement results are expressed both by bar graph and numerically on a liquid crystal display.
Further, the wide dynamic range of 100 dB eliminates the need for range switching, realizing easier and more accurate measurements.

Features
¡Ü Percentile level (Lx) -any 5 selectable values
¡Ü Measure equivalent continuous A-weighted sound pressure level capability (Leq)
Measure environmental noise required for securing occupational health capability
¡Ü Wide linearity range of 100 dB
¡Ü Equipped with an RS-232C function, allows for processing of data by PC
¡Ü Equipped with memory function, allows for storing up to 15,000 bits of data
¡Ü Backite LCD screen for high-visibility and easy-on-the-eye display
¡Ü Excellent cost/performance ratio overpowers comparably priced products
