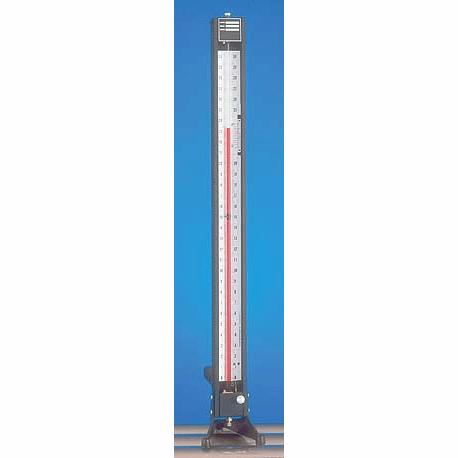

MR84170 Wall Mount Manometer 12"

Á¦Á¶»ç : DAVIS
Á¦Ç°¹øÈ£:MR84170
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

Well Type Manometers are accurate and dependable as well as highly versatile for many applications.
Well Type Manometers are accurate and dependable as well as highly versatile for many applications. Provides fast, direct-readings of pressure, vacuum, differential, flow and liquid levels. Available as either single or multiple-tube models. No adding of distances above and below a zero line. All scales are graduated to correct for the drop in well level and are full width of the instrument. The selection chart below will help you choose the correct manometer for your application.

SPECIFICATIONS

Ranges (in inches)

12, 20, 30, 40 and 60
Wetted Parts 303 SS
Pressure Rating 30EBX25-250 psig (standard)
30EBX50-500 psig
Mounting Styles Wall
Table
Flush Front
Pipe
Standard Scales A, B, G, H, I, MBAR, MB, MI, KPa
Special Features Versatile, General Purpose Well Type Manometer. Flow, Liquid Level. Tube I.D.—.200"

STANDARD SCALES

Inches

Scale A

Scale B

Scale G

Scale H

Scale I



Inches and
tenths of
manometer
fluid

Inches of water
pressure using
mercury
(dry basis)

Inches and tenths
of water pressure
using
.827 Red Oil

Inches and tenths
of water pressure
using
1.75 Blue Fluid

Inches and fifths
of water pressure
using 2.95
No. 3 Red Fluid



6

6

81.4

4.9

10.5

17.8


10

10

135.7

8.2

17.5

29.6


15

15

203.5

12.4

36.3

44.5


20

20

271.4

16.5

35.0

59.3


30

30

407.1

24.7

52.5

88.9


40

40

542.8

33.0

70.0

118.6


50

50

678.5

41.2

87.5

148.2


60

60

814.2

49.5

105.0

177.9


80

80

1085.6

66.0

140.0

237.2


100

100

1357.0

82.5

175.0

296.5

CAT NO. MODEL DEscRIPTION AVAIL PRICE
MR84170   30EBX25 12"WM A   WALL MOUNT MANOMETER 12"   Yes   982,800
MR84171   30EBX25 20"WM A   WALL MOUNT MANOMETER 20"   Yes   1,069,200
MR84172   30EBX25 30"WM A   WALL MOUNT MANOMETER 30"   Yes   1,077,840
MR84174   30EBX25 40"WM A   WALL MOUNT MANOMETER 40"   Yes   1,263,600
MR84176   30EBX25 60"WM A   WALL MOUNT MANOMETER 60"   Yes   1,464,480
MR84179   30EBX25 12"TM A   TABLE MOUNT MANOMETER 12"   Yes   1,177,200
MR84180   30EBX25 20"TM A   TABLE MOUNT MANOMETER 20"   Yes   1,242,000
MR84181   30EBX25 30"TM A   TABLE MOUNT MANOMETER 30"   Yes   1,285,200
MR84183   30EBX25 40"TM A   TABLE MOUNT MANOMETER 40"   Yes   1,404,000
MR84185   30EBX25 60"TM A   TABLE MOUNT MANOMETER 60"   Yes   1,620,000
MR84145   923RO-1   OPTIONAL MANOMETER FLUID 0.827 SP. GR. FOR Ruggedized Well-Type Manometers   Yes   62,640



MR84146   924BB-1   OPTIONAL MANOMETER FLUID 1.75 SP. GR. FOR Ruggedized Well-Type Manometers   Yes   116,640



MR84148   924BA-1   OPTIONAL MANOMETER FLUID 2.95 SP. GR. FOR Ruggedized Well-Type Manometers   Yes   114,480
