DW33101 Stainless Steel Pitot Tube

제조사 : DAVIS
제품번호:DW33101
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Hemispherical tips—almost impossible to damage.Air velocity calculator
Features
  • Hemispherical tips—almost impossible to damage
  • Air velocity calculator
  • Portable or stationary fixed mounting types
  • Direct reading velocity charts
Standard 5/16" Diameter Pilot Tubes
  • Recommended for ducts 10" and larger in diameter
  • Plainly inscribed inch graduations on both sides show depth of insertion at a glance—this helps you find the exact center of any duct and make an accurate traverse quickly
  • Tubes comply with AMCA & ASHRAE specifications
  • Test-confirmed unity coefficients
  • Life-time construction of #304 stainless steel
  • Suitable for use in temperatures up to 1500°F
  • Accurate readings when tip is directed within 15° of air flow
  • Static connection extends 3-1/2" to serve as guide for directing tip
  • Swaged tip, silver soldered connections
  • Seven sizes from 8" to 60" long (see chart)
Pocket-size 1/8" Diameter Pitot Tubes
  • Recommended for ducts 4" and larger in diameter
  • Geometrically scaled down per AMCA code
  • Unity coefficient design
  • Springy, #304 hypodermic needle grade stainless steel withstands flexing without damage
  • Resists temperatures up to 800°F
  • Extended static connection serves as a guide for directing tip into air stream
  • Suitable for permanent mounting and OEM applications
  • Four models—6" or 12" lengths in standard or short tip styles
CAT NO. MODEL DEscRIPTION AVAIL PRICE
DW33101 160-8 STAINLESS STEEL PITOT TUBE 8" INSERTION LENGTH 160-8 Yes 89,640
DW33102 160-12 STAINLESS STEEL PITOT TUBE 12" INSERTION LENGTH 160-12 Yes 103,680
DW33103 160-18 STAINLESS STEEL PITOT TUBE 18" INSERTION LENGTH 160-18 Yes 110,160
DW33104 160-24 STAINLESS STEEL PITOT TUBE 24" INSERTION LENGTH 160-24 Yes 102,600
DW33105 160-36 STAINLESS STEEL PITOT TUBE 36" INSERTION LENGTH 160-36 Yes 127,440
DW33106 160-48 STAINLESS STEEL PITOT TUBE 48" INSERTION LENGTH 160-48 Yes 129,600
DW33107 160-60 STAINLESS STEEL PITOT TUBE 60" INSERTION LENGTH 160-60 Yes 149,040
DW33108 166-6 STAINLESS STEEL PITOT TUBE 6" INSERTION LENGTH 166-6 Yes 105,840
DW33109 166-12 STAINLESS STEEL PITOT TUBE 12" INSERTION LENGTH 166-12 Yes 108,000
DW33110 167-6 STAINLESS STEEL PITOT TUBE 6" INSERTION LENGTH 167-6 Yes 105,840
DW33111 167-12 STAINLESS STEEL PITOT TUBE 12" SHORT TIP STYLE 167-12 Yes 108,000

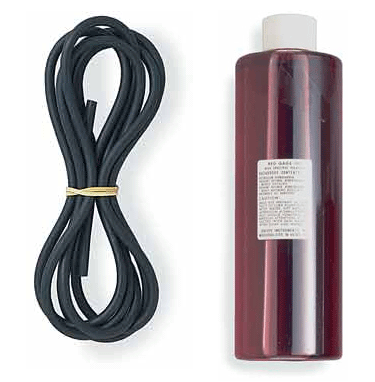

DW11 A202 (PER FOOT) OPTIONAL RUBBER TUBING 3/16th I.D. (PER FOOT) FOR Stainless Steel Pitot Tubes Yes

3,672
DW44 A103 OPTIONAL RED GAGE OIL .826 SP. GR. 1 PINT FOR Stainless Steel Pitot Tubes Yes 33,480
