214 Vibration Analyzer / Balancer

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

¡Ü Machinery vibration analysis and dyanmic balancing, single and two-plane ¡Ü On-the-spot trouble-shooting of vibration problems
FEATURES
¡Ü
Machinery vibration analysis and dyanmic balancing, single and two-plane
¡Ü On-the-spot trouble-shooting of vibration problems
¡Ü Pinpoint problems with manually-tuned frequency analysis
¡Ü Rugged, solid state construction
¡Ü Strobe for balancing and phase measurements
¡Ü
High intensity strobe light

APPLICATIONS
¡Ü Dynamic balancing
¡Ü Fans, motors, pumps, spindles and grinding wheels
¡Ü Rotating machinery vibration analysis
¡Ü Balancing machine instrumentation

DEscRIPTION

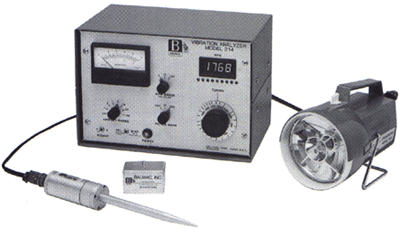

Balmac's Model 214 Vibration Analyzer/Balancer is an economical instrument for analyzing vibration of rotating machinery as well as balancing the machines.

The Model 214 features a large, easy to read analog amplitude meter, a digital frequency meter and a high intensity strobe light. It features a tunable filter that covers machinery speeds of 150 to 200,000 cycles per minute (RPM). All circuitry is housed in a metal enclosure that is rain- and dust-proof. It features a silver anodized faceplate and large, easy to read meters.


SPECIFICATIONS
Amplitude Ranges 0 to 100 mils or inches/second
Eight overlapping ranges of :
0.03, 0.1, 0.3, 1, 3, 10, 30, 100
Sensitivity 0.001 mil or inch/second
Filter Range 150 to 200,000 CPM
(2.5 to 333 Hz)
Filter Bandwidth 5%
Vibration Inputs Two (selectable)
Strobe Light One flash per cycle
to 4800 CPM
Submultiple to 200,000 CPM
Frequency Meter Three overlapping ranges of :
    150 to 2,000 CPM
    1500 to 20,000 CPM
    15,000 to 200,000 CPM
Enclosure Rain-tight, dust-tight
Power Requirement 105 to 125 volts AC, 50/60 Hz
Weight 8.5 lbs (3.85 kg)
Size 8 1/4" ¡¿ 12 1/2" ¡¿ 7 1/2"
(21 ¡¿ 32 ¡¿ 19 cm)
Accessories Model 297 Strobe Light, Model 158 Pickup, Magnetic Pickup Base and Cables
VIBRATION ANALYZERS (AC Powered) (Shop Balancer)
MODEL 214 VIBRATION ANALYZER / BALANCER KIT-1 7,720,000¿ø
  Consisits of: 214 Analyzer / Balancer
    158 Vibration Pickup
    044-15 Pickup Cable (15')
    055 Magnetic Pickup Base
    297 Strobe Light
    Manual and Calibration Certificate
MODEL 214 VIBRATION ANALYZER / BALANCER KIT-2 (Kit-2 has 2-Pickup Sets) 8,420,000¿ø
VIBRATION ANALYZER & VIBRATION METER ACCESSORIES
051 PROBE (7") (for 158 and 160 Pickups) 60,000¿ø
055 MAGNETIC PICKUP BASE (for 158 and 160 Pickups) 190,000¿ø
056 VISE-GRIP PICKUP BASE (for 158 and 160 Pickups) 190,000¿ø
057 FISH-TAIL SHAFT STICK BASE (for 159 and 160 Pickups) 190,000¿ø
158 VIBRATION PICKUP (Velocity Type) 780,000¿ø
160 VIBRATION PICKUP (Integrated Electronic Velocity used for Low-Frequency) 780,000¿ø
041-15 VIBRATION PICKUP CABLE (15') (for 158 Pickup) 190,000¿ø
041-25 VIBRATION PICKUP CABLE (25') (for 158 Pickup) 220,000¿ø
041-xx PICKUP CABLE (for 158 Pickup) xx = Length @ $1.30 per foot 150,000¿ø
048-15 VIBRATION PICKUP CABLE (15') (for 160 Pickup) 190,000¿ø
048-25 VIBRATION PICKUP CABLE (25') (for 160 Pickup) 220,000¿ø
048-xx PICKUP CABLE (for 160 Pickup) xx = Length @ $1.30 per foot 150,000¿ø
045-15 STROBE CABLE (15') (for 297 Strobe for the Model 214) 190,000¿ø
044-15 STROBE CABLE (15') (for 295 Strobe for the Model 216-D) 190,000¿ø
036 SHIPPING CASE (for Model 216-D) 780,000¿ø
037 CARRYING CASE (for Model 214 and 216-D) 220,000¿ø
21-000 AC POWER LINE CORD (for Model 216-D) 70,000¿ø
20-600 DC POWER CORD (for Model 216-D) 40,000¿ø
295 STROBE LIGHT (5-pin connector) (for the Model 216-D) 1,930,000¿ø
297 STROBE LIGHT (6-pin connector) (for the Model 214) 1,930,000¿ø
8106 VIBRATION RECORD SHEETS 10,000¿ø
8107 VIBRATION MAINTENANCE RECORD SHEETS 10,000¿ø
GRAPH POLAR-GRAPH PAPER 25-SHEETS (Balancing Record Work Sheet) 7,000¿ø
METRIC METRIC UNIT CALIBRATION & NOMENCLATURE 031-777-1588
BAL-CP CALCULATOR FOR BALANCING (HP-48)  670,000¿ø
