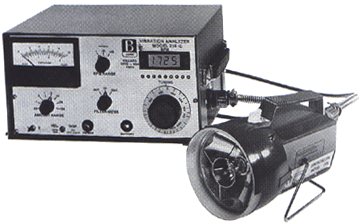

216-D Vibration Analyzer / Balancer

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

FEATURES

¡Ü
Machinery vibration analysis and dynamic
balancing, single and two plane
¡Ü On-the-spot trouble-shooting of vibration problems
¡Ü Large, easy to read meters
¡Ü Rugged, solid state construction
¡Ü Dual function, high intensity strobe
¡Ü Connects to X-Y recorders for graphing

APPLICATIONS

¡Ü
Balancing - portable and shop
¡Ü Fans, motors, pumps, compressors, spindles
¡Ü Rotating machinery vibration analysis and balancing
¡Ü Predictive maintenance programs

DEscRIPTION

Balmac's Model 216-D Vibration Analyzer/Balancer is designed to check vibration of rotating machinery as well as balance machines on a day-to-day basis. It is an essential instrument for start up and basic, low-cost predictive maintenance programs.

The Model 216-D is especially useful for training personnel in vibration analysis. It features a large, easy-to-read analog amplitude meter, a digital frequency meter and a dual function, high intensity strobe light for balancing that also provides concen-trated light on the workpiece.

Instrumentation is enclosed in a dust- and rain-tight enclosure so the instrument can be used in shop or on field-service applications.

Instruction materials are easy to understand, and minimal training is required for personnel to conduct accurate and rapid analysis and balancing on rotating machinery.

The 216-D
Analyzer/Balancer,probe, strobe and cables are fitted into a heavy-duty, aviation- style case. The unit packs in such a way to permit recharging of battery without removing the instrument from the case.
The case fits easily under airline seats.


BENEFITS OF VIBRATION ANALYSIS

Vibration analysis is an effective maintenance tool that can help rotating equipment manufacturers, service contracotrs and maintenance departments save repair costs and increase profitability.

Studies show most rotating machinery failures are preceded by a rise in vibration levels. Excessive vibration results in bad bearings, cracks in pipes and foundations, broken mounting bolts, misalignment and unbalance. Even more serious, and entire HVAC system, production line, or pumping operation could be shut down due to an individual piece of machinery failing.

Periodically measuring and recording vibration data in rotating machinery reveals trends and increased vibraiton levels. Analyzing this data assists operators to schedule maintenance. Minor, less costly problems are corrected before they become expensive failures.


SPECIFICATIONS
RANGES      English: 0.03, 0.1, 0.3, 1, 3, 10, 30, 100 Mils (peak to peak) & in/sec (peak)-full scale
Metric: 1, 3, 10, 30, 100, 300, 1000, 3000 ¥ìm (peak to peak) & mm/sec (peak)-full scale (optional mertic units)
MINMUM READING
SENSITIVITY      Displacement - 0.000001 in. (0.2¥ìm)
Velocity - .001 in/sec (0.02 mm/sec)
  ACCURACY      5%
FREQUENCY METER      0 TO 200,000 rpm
TURNABLE FILTER      165 to 200,000 rpm
ACCESSORIES      Model 158 Pickup with removable probe, magnetic pickup base
Model 295 strobe light, carrying case, cables and rechargeable battery
POWER      117/220 V 50/60 Hz or internal battery (30 hrs use per charge)
WEIGHT      Instrument with battery: 11.6 lbs (5.26 kg)
Complete system in case: 25 lbs (11.3 kg)
SIZE      Instrument: 11 3/4" ¡¿ 6 3/4" ¡¿ 9 1/4" (29.8 ¡¿ 17.1 ¡¿ 23.5 cm)
Case: 8" ¡¿ 13" ¡¿ 18" (20.3 ¡¿ 33 ¡¿ 45.7 cm)
INPUTS      Two (for Model 158 pickup). (Unit may be calibrated for other pickups)
OUTPUT      1. Signal for oscilloscope analysis (as vibration signal)
2. (Extra cost option) X-Y recorder (dc signals for amplitude and frequency) for vibration profiles
OPTIONAL EQUIPMENT      Extra vibration pickup; X-Y recorder; extra magnetic base pickup; vice grip pickup base

VIBRATION ANALYZERS (AC & Battery Powered) (Portable Balancer)
MODEL 216-D VIBRATION ANALYZER / BALANCER KIT-1 10,060,000¿ø
  Consisits of: 216-D Analzer / Balancer (with Rechargeable Battery)
    158 Vibration Pickup
    041-15 Pickup Cable (15')
    055 Magnetic Pickup Base
    051 Probe Tip (7")
    295 Strobe Light
    044-15 Strobe Cable (15')
    021-000 AC Power Cord
    037 Carrying Case
    Pad Polar Graph Paper
    Manual and Calibration Certificate
MODEL 216-D VIBRATION ANALYZER / BALANCER KIT-2 (Kit-2 has 2-Pickup Sets) 10,760,000¿ø

VIBRATION ANALYZER & VIBRATION METER ACCESSORIES
051 PROBE (7") (for 158 and 160 Pickups) 60,000¿ø
055 MAGNETIC PICKUP BASE (for 158 and 160 Pickups) 190,000¿ø
056 VISE-GRIP PICKUP BASE (for 158 and 160 Pickups) 190,000¿ø
057 FISH-TAIL SHAFT STICK BASE (for 158 and 160 Pickups) 190,000¿ø
158 VIBRATION PICKUP (Velocity Type) 780,000¿ø
160 VIBRATION PICKUP (Integrated Electronic Velocity used for Low-Frequency) 780,000¿ø
041-15 VIBRATION PICKUP CABLE (15') (for 158 Pickup) 190,000¿ø
041-25 VIBRATION PICKUP CABLE (25') (for 158 Pickup) 220,000¿ø
041-xx PICKUP CABLE (for 158 Pickup) xx = Length @ $1.30 per foot 150,000¿ø
048-15 VIBRATION PICKUP CABLE (15') (for 160 Pickup) 190,000¿ø
048-25 VIBRATION PICKUP CABLE (25') (for 160 Pickup) 220,000¿ø
048-xx PICKUP CABLE (for 160 Pickup) xx = Length @ $1.30 per foot 150,000¿ø
045-15 STROBE CABLE (15') (for 297 Strobe for the Model 214) 190,000¿ø
044-15 STROBE CABLE (15') (for 295 Strobe for the Model 216-D) 190,000¿ø
036 SHIPPING CASE (for Model 216-D) 780,000¿ø
037 CARRYING CASE (for Model 214 and 216-D) 220,000¿ø
21-000 AC POWER LINE CORD (for Model 216-D) 70,000¿ø
20-600 DC POWER CORD (for Model 216-D) 40,000¿ø
295 STROBE LIGHT (5-pin connector) (for the Model 216-D) 1,930,000¿ø
297 STROBE LIGHT (6-pin connector) (for the Model 214) 1,930,000¿ø
8106 VIBRATION RECORD SHEETS 10,000¿ø
8107 VIBRATION MAINTENANCE RECORD SHEETS 10,000¿ø
GRAPH POLAR-GRAPH PAPER 25-SHEETS (Balancing Record Work Sheet) 7,000¿ø
METRIC METRIC UNIT CALIBRATION & NOMENCLATURE 031-777-1588
BAL-CP CALCULATOR FOR BALANCING (HP-48)  670,000¿ø
