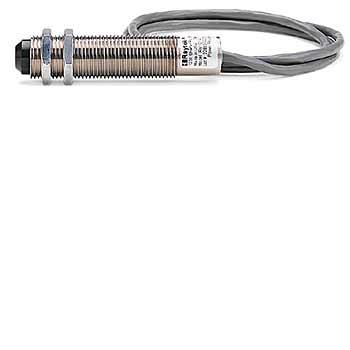

CI-3A Àû¿Ü¼± ¿Âµµº¯È¯±â (0 ~ 300'C)

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

Àû¿Ü¼± ¿Âµµ°è ¿Âµµ ¹üÀ§: 0 ~ 300'C Ãâ·Â: mV/'C

Compact¢â Series

Compact Series Image

Compact Series noncontact infrared (IR) temperature sensors are small, easily installed and low cost. This combination makes them ideal for OEM applications! Raytek offers a complete range of compact low-cost models (listed below)

Models Available:

Compact CI - Compact, low cost and integrated electronics, designed for simple installation into a standard 4-wire system. Ideal replacement for traditional J-type or K-type thermocouples. Available with your choice of thermocouple or millivolt signal outputs.

Compact MI - The new and hottest sensor in the industry! Powerful full featured sensor in a miniature package. Two piece system consists of a miniature sensing head and seperate electronics. Complete range of user-configurable options gives this small sensor the ability to tackle many applications.

Compact GP - Compact temeperature measurement system that consists of a multifunction panel meter with multiple I/O options, and interfaces to a selection of infrared sensing heads. Learn more about GP Monitor and GP Laser Sighting head!

Some Applications Include:
Compact Series CI¢â

Raytek CI Sensor Image
The CI Series Compact Infrared Sensors accurately and repeatably measure the amount of heat energy emitted from an object and convert the energy into a measurable electrical signal. The CI measures target temperatures ranging from 0 to 500¡ÆC (32 to 932¡ÆF). The onboard electronics are protected by a rugged IP 65 (NEMA-4) stainless steel housing, allowing the sensor to function in ambient temperatures to 70¡ÆC (160¡ÆF) without cooling. With water cooling, the CI can withstand ambient temperatures up to 260¡ÆC (500¡ÆF).

Features:
  • Type J or K, or 0-5 V output
  • Two models cover temperature ranges from 0¨¬C to 500¡ÆC (32¨¬F to 932¡ÆF)
  • IP 65 (NEMA-4) stainless steel electronics housing
  • 4:1 optics at 90% energy
  • 350 mSec (95%) response time
  • Powered by 12-24 VDC at 20 mA
  • Accessories available for cooling and air purging
Compact Series GP¢ç

Raytek GP Sensor  Image
The GP Series is a versatile, two-piece temperature monitoring system that combines a compact monitor and an infrared sensing head. The heart of the system, the 1/8 DIN GP monitor, provides advanced infrared processing capabilities including peak and valley hold, averaging, and a user-adjustable offset. The rugged Thermalert GPR/GPS sensors are available with standard or close focus optics, and provide target temperature readings with 1% accuracy. The Thermalert GPM is available with preinstalled cable.

Features:
- Temperature range from -18 to 538¡ÆC (0 to 1000¡ÆF)
- NEW! GPS Laser Sighted Head (Click here to learn more about this feature)
- Compact 1/8 DIN digital monitor with large 4-digit display
- Monitor and sensor functions configured on front panel
- Signal processing capabilities typically found on much larger systems
- Adjustable emissivity and t-ambient parameters
- Universal 110-220 VAC power included
- User-defined 4-20 mA or thermocouple output (J, K, E, N, R, S, T)
- Adjustable dual setpoints and deadband alarm outputs
- Choice of sensing head to match application requirements
- Standard and close focus optics available
- Accessories for cooling and air purging
- Field interchangeable sensing heads
Compact Series GP Monitor¢ç

The GP Temperature Monitor Provides a Compact, Easy-to-Use Interface and Display for Process Instruments. Accepting inputs from any 0-5V sensor, 4-20mA sensor or thermocouple type J, K, E, N, R, S, T, the GP monitor can be used with many Raytek noncontact infrared temperature sensors. The monitor also provides a user-defined 4-mA or thermocouple output, and two adjustable setpoints/deadbands to control the +5V alarm outputs or optional 3A mechanical relays.

The GP monitor accepts 110-220 VAC power and provides a 24 VDC/50 mA excitation voltage, capable of providing loop power to external sensors. For signal processing requirements, the monitor provides Peak Hold, Valley Hold, Averaging features and a user-adjustable offset. Best of all, there are no internal jumpers used for setup all monitor functions are configured via the front panel.

Versatile. Compact. Value-priced. All reasons to standardize on the GP monitor for your process monitoring requirements.

Compact GPS Laser Sighted Head¢ç


New! Raytek Laser Sighted GPS! The newest addition to the Compact Series GP infrared monitoring system is the GPS sensor with laser sighting. Laser sighting provides for alignment in hard-to-reach locations, or to the small or distant targets that the GPS is capable of measuring (as small as 4.5 mm at 200 mm and 0.18 in @ 8 in, for the close focus version of the sensor).

The GPS targets temperatures from -18 to 540¨¬C (0-1000¨¬F) with 1% accuracy, and has a standard optical D:S ratio of 50:1. The GPS integrated coaxial Class 2 laser is connected to the remote activation switch box via the included 4 m (13 ft) cable. An additional 8 m (26 ft) of cable is also included to connect the switch box to the GP monitor.
