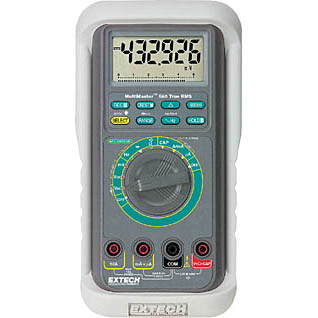

EH560 MultiMaster Precision MultiMeter

Á¦Á¶»ç : Davis
½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

The Precision Series of precision multimeters are designed for the most demanding applications.
Basic DCV accuracy of 0.02% (EH570) demonstrates the accuracy and resolution that is carried through all the measurement functions.
Special features include adjustable trigger level in the Frequency function, Smart Auto Power Off, fast Continuity test, Relative, Hold and Peak Capture.
The rugged splash proof case is enhanced with a heavy duty rubber holster. The optional PC software and cable can be used to link the multimeter to a PC for data collection and analysis.
Features
  • AC+DC True RMS — Accurate measurements on non-sinusoidal or distorted waveforms with both AC and DC components
  • 4-20mA — Displays process current measurements as 0 to 100%
  • Peak — Capture glitches down to 800µs in duration
  • Auto Power Off — Smart auto power off is disabled if a signal is present
  • Max/Min — Stores maximum and minimum readings
  • PC Interface — Optional Windows¢ç 95/98/NT/2000 compatible software for data display, storage and analysis
  • Includes — Double injection molded CAT III-1000V Test leads, Type K thermocouple probe (EH570), protective holster and 9V battery
  • Three year warranty
SPECIFICATIONS

EH560

EH570

Display counts

50,000/500,000

Basic DC Volt Accuracy

0.03%

0.02%

AC Amp Range

0.01uA to 10A (20A for 30 sec.)

DC Amp Range

0.01uA to 10A (20A for 30 sec.)

AC Volt Range

0.01mV to 1000V

DC Volt Range

0.001mV to 1000V

Ohms Range

0.01¥Ø to 50M¥Ø

0.01¥Ø to 500M¥Ø

Capacitance Range

50nF to 999¥ìF

Frequency Range

5Hz to 2MHz

Temperature Range

N/A

-58¡ÆF to 1832¡ÆF
(-50 TO 1000¡ÆC)

Continuity/Diode

yes

PC software/cable

optional

Catalog No. Description Price
EH560 MultiMaster Precision MultiMeter 457,164
EH570 MultiMaster Precision MultiMeter with Temperature 548,964
EH810 Software Diskette and Serial Cable 163,404
EH899 Vinyl Pouch Carrying Case 34,884
