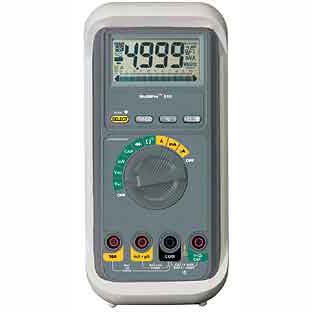

EHMP510 Professional MultiMeter

Á¦Á¶»ç : Davis
½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

The Professional Series of multimeters are designed to provide the user a professional meter that will withstand the rigors of heavy duty use.
Performance, including accuracy and resolution, is unsurpassed by any 5000 count meter in this price range.
All models offer features such as wide AC bandwidth (20kHz) and PC interface. Selected models offer True RMS detection, 5ms Peak Hold and wide temperature measurements.
Features
  • Wide Bandwidth — 40Hz to 20kHz AC Voltage bandwidth
  • True RMS — for non-sinusoidal waveforms (EHMP520, EHMP530)
  • Added features — Model EHMP530 offers Temperature, Relative, Min/Max and Peak Hold
  • PC Interface — Optional Windows¢ç compatible software
  • Includes — Built-in stand with belt clip, CAT III test leads, protective holster, 9V battery, and temperature probe (EHMP530 only)
  • 3 Year Warranty
SPECIFICATIONS

Basic DC Volt Accuracy

0.08%
Display 5000 counts (backlit)
True RMS MP520, MP530, ML710, ML720
AC Amp Range 0.1uA to 10A (20A for 30 sec.)
DC Amp Range 0.1uA to 10A (20A for 30 sec.)
AC Volt Range 0.01mV to 1000V
DC Volt Range 0.01mV to 1000V
Ohms Range 0.01¥Ø to 50M¥Ø
Capacitance Range 0.01nF to 9999¥ìF
Frequency Range 0.001Hz to 125kHz
Temperature Range(MP530) -58¡ÆF to 1832¡ÆF (-50 to 1000¡ÆC)
Continuity yes
RS 232 Interface yes
Software / Cable optional for MultiPro, included for MultiLog
Catalog No. Description Price
EHMP510 Professional MultiMeter 232,529
EHMP520 True RMS Professional MultiMeter 263,741
EHMP530 True RMS Professional MultiMeter with temperature 279,347
EHML710 Datalogging Multimeter, 5,400 points 419,801
EHML720 Datalogging Multimeter, 43,000 points 507,195
