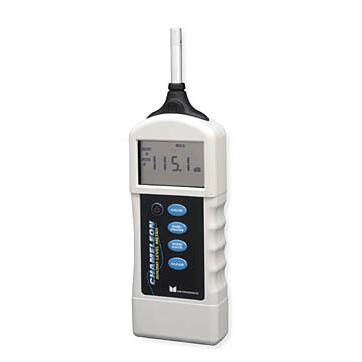

| The Chameleon is a single instrument that adapts to the needs of both novice and advanced users |
| The Chameleon is a single instrument that adapts to the needs of both novice and advanced users. Every Chameleon comes standard with Feature Pack 1, providing the most basic functions of a sound level meter. Additional Feature Packs may be purchased separately to change the Chameleon’s functionality.
Operational in 5 easy steps in 5 minutes or less
- Turn ON — Press the ON/OFF button
- Calibrate — Press the CALIB button, insert the microphone into the calibrator, turn the calibrator on, let the displayed reading stabilize and press the CALIB button a second time. Remove the calibrator.
- Collect Data — Press the RUN/PAUSE button to begin storing data. Press the RUN/PAUSE button a second time to stop storing data.
- View Readings — Press the VIEW DATA button repeatedly to scroll through measurement data.
- Clear Memory — Press the CLEAR button. CLR appears on the display. Press the CLEAR button a second time and the memory is cleared.
|
| |
|
Pack 2 Measurement Data |
- SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time
|
| |
|
Pack 3 |
- SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time • Amplitude Distribution
|
| | |
|
Pack 4 |
- SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time • Time History
|
| |
|
Set-up Options - Packs 2, 3 & 4 |
- Fast, Slow or Impulse
- A or C Weighting
- Calibration Level
- 3, 4 or 5 dB doubling
|
| | |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| QS139340 |
|
SLM1-MK |
|
SOUND LEVEL MTR KIT W/CAL CASE, WIND SCREEN |
|
Yes |
|
1,890,000 |
| QS139341 |
|
PACK 2 |
|
OPTIONAL SOFTWARE UPGRADE W/INTERFACE CABLE FOR Chameleon Sound Level Meter |
|
Yes |
|
613,440
|
| QS139342 |
|
PACK 3 |
|
OPTIONAL SOFTWARE UPGRADE W/INTERFACE DATALOGGING FOR Chameleon Sound Level Meter |
|
Yes |
|
840,240
|
| QS1393421 |
|
PACK 4 |
|
OPTIONAL SOFTWARE UPGRADE W/INTERFACE TIME HISTORY DATLOG FOR Chameleon Sound Level Meter |
|
Yes |
|
840,240
|
| QS139343 |
|
2135-2030-04 |
|
OPTIONAL WINDOWS SOFTWARE FOR Chameleon Sound Level Meter |
|
Yes |
|
252,720
| | |
|
|
 | |
 |
|
 |
|
