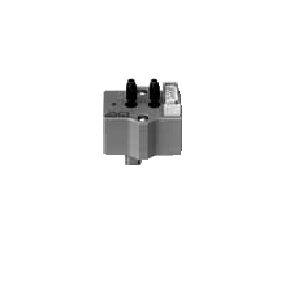

FD A622 M6 Pressure Modules
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Pressure modules with compact design for flow measurements with Pitot tubes.
FD A622 M6
Pressure Modules for Differential Pressure
and Pitot Tubes Type
¡Ü Pressure modules with compact design for flow
measurements with Pitot tubes.
¡Ü Fitting for connecting hose between Pitot tube and pressure module.
¡Ü Pressure modules can be directly plugged onto the measuring instruments.
¡Ü Socket for connection of an additional temperature sensor for temperature compensation.
¡Ü Particularly suitable for stationary wind velocity
measurements with continuously changing temperatures.

¢Ñ When attaching the measuring module other input
sockets will be blocked. If the blocked input sockets need
to be used or if the module can be directly installed at
the measuring location, a pressure module type
FDA602M1K/M6 with extension cable ZA9060VKx (max.
5m) must be used. The temperature sensor must then
be connected via a second device input socket and
programmed as a compensation sensor.

Accessories:
FTA225 NiCr-Ni jacket thermocouple TK 125:
1mm ¨ª, protecting tube 4mm ¨ª with handle,insertion depth 300mm,cable length 1.2m
FTA4313L NiCr-Ni jacket thermocouple T 431 3L:
1.6mm ¨ª, without handle 300mm long,
cable length 2m
ZB2295S 1 set silicone hoses
black/colourless 2m long
ZB2295SSL Silicone hose black per m
ZB2295SFL Silicone hose colourless per m
Technical Data:
Accuracy (zero-pt adjusted): ¡¾0.5% (typ. 0.2%)
of final value
Nominal temperature: 22¡ÆC ¡¾2¡ÆC
Temperature drift: max. 1.5% (typ. 0.5%) of final value
Sensitivity to position: ¡¾5Pa
FDA622M1K pos.independent
Overload capacity: maximum triple
measuring range
Max. common mode pressure: 300kPa (3bar)
Operating range: -10 to +60¡ÆC,
10 to 90% r.H.
non-condensing
Dimensions: 37 x 36 x 22mm
Hose connection: ¨ª 5mm, 12mm long
Sensor material: aluminium, nylon, silicone,
silica gel
Temperature compensation: effective in range
-50.0 ¡¦ +700.0¡ÆC

Types:
FDA622M6 Meas. ranges: 2 to 90m/s,
with automatic temperature
compensation for Pitot tubes,
meas. variables: m/s, ¡ÆC

¢Æ All ALMEMO¢ç NiCr-Ni temperature sensors can be used
as temperature sensors for the automatic temperature
compensation.
These measuring modules are only designed for wind
velocity measurements.
They cannot perform any pressure measurements.
