Low-salt waste water, general aqueous and partly aqueous solutions, fish tanks, emulsions, etc..

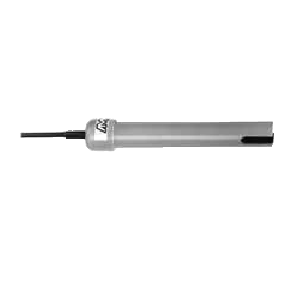

FYA641LF2 Conductivity Probe Type


Applications:
Low-salt waste water, general aqueous and partly aqueous solutions, fish tanks, emulsions, desalting/ion exchanger, beverages, waters, cold/boiler feed water, lacquers and paints, milk, samples with low ionic strength, substances containing protein, purest water, soaps, detergents, suspensions, drinking water, environmental analysis.

Accessories:
ZB96LFRL2 Reference solution 147¥ìS/cm at 25¡ÆC0.001mol KCl, 250ml
Technical Data:
Measuring range: 1 to 200¥ìS/cm
Temperature sensor: NTC, type N (10k at 25¡ÆC)
Temperature compensation: 0 to +70¡ÆC, automatic
Compensation coefficient: 1.9 linear
Cell constant: approx. 1cm-©ö
Electrode material: special coal
Accuracy: ¡¾ 2% of meas. val. + 0.5¥ìS
Nominal temperature: 25¡ÆC ¡¾ 3¡ÆC
Operating temperature: -5 to 70¡ÆC
Minimum insertion depth: 30mm
Shaft material: PVC - C
Shaft length/Shaft diameter: 120mm/20mm
Cable length: 1.5m
Power supply: 8 to 12V through meas. instr.
Current consumption: approx. 3mA

Type:
FYA641LF2 Active conductivity probe 0 ¡¦ 200¥ìS/cm with automatic temperature compensation
