These highly affordable Cure Zone¢â units are excellent entry-level systems when making the transition to UV curing.
UV FLOOD CURING SYSTEMS CURE ZONE¢â SERIES
These highly affordable Cure Zone¢â units are excellent entry-level systems when making the transition to UV curing. With an 8¡± x 8¡± cure area, and 80mW/cm2 output at 365nm, each Cure Zone¢â is designed for applications involving large assemblies or batch processing of smaller parts. Each Cure Zone¢â and Cure Zone¢â 2 can be used in automated or manual operations. Cool UV input ideal for heat-sensitive materials.

Such budget-conscious technology allows the user to either add the Cure Zone¢â to an existing UV production facility as a lab unit, or experiment with UV applications for the first time.

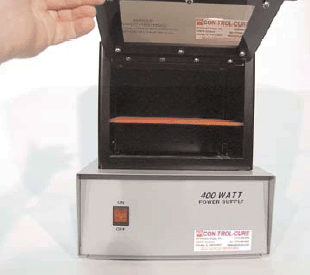

SPECIFICATIONS - CURE ZONE¢â:

¡Ü Cure Area: 8¡± x 8¡± (20 cm x 20 cm)
¡Ü UV Output: 80mW/cm2 @ 365nm
¡Ü Power Requirements: 90-130V AC, 50/60Hz or 180-264V AC, 50/60Hz
¡Ü Power Supply: 400W solid state; 11.5"H x 10.0"W x 3.5"D (29.2 cm x 25.4 cm x 8.9 cm)
¡Ü Reflector Housing Dimensions: 9.5"H x 8.25"W x 7.25"D (24.1 cm x 21.0 cm x 18.4 cm)
¡Ü Weight: 22 lbs (10 kg)
¡Ü Thermally-controlled fan in reflector housing
¡Ü Height-adjustable work surface
¡Ü Hinged door access shield/short-wave UV filter reduction

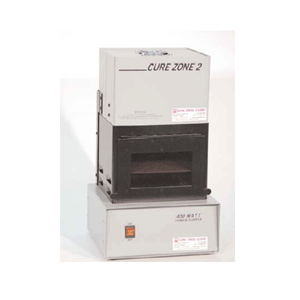

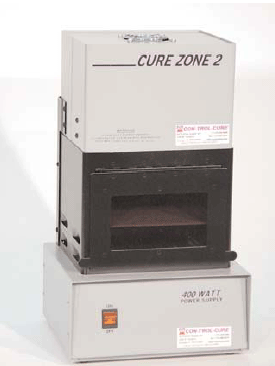

SPECIFICATIONS - CURE ZONE¢â 2:
¡Ü Cure Area: 8¡± x 8¡± (20 cm x 20 cm)
¡Ü UV Output: 80mW/cm2 @ 365nm
¡Ü Power Requirements: 120V AC, 60 Hz
¡Ü Power Supply: 400W transformer; 11.5¡±H x 10.0¡±W x 5"D (29.2 cm x 25.4 cm x 12.7 cm)
¡Ü Reflector Housing Dimensions; 9.5"H x 8.25"W x 7.25"D (24.1 cm x 21.0 cm x 18.4 cm)
¡Ü Weight: 36 lbs (16.4 kg)
¡Ü Fixed fan speed in reflector housing
¡Ü Height-adjustable work surface
¡Ü Slide-out access shield/short-wave UV filter reduction

Part Number Description Units
A001-052A CURE ZONE¢â 110V EACH
A001-052B CURE ZONE¢â 220V EACH
A001-051 CURE ZONE¢â 2 EACH
