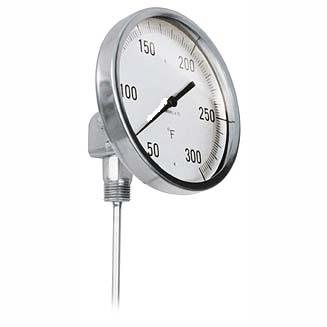

| An unusual feature of this thermometer is that the head may be turned or tilted or any angle. Constructed of welded stainless steel, it is rust, corrosion and leak proof. The bimetal is dampened with silicone for minimum heat transfer.
Thermometers are made to order. Please be certain of your specifications. Credit cannot be given for returned instruments. |
| |
|
Features |
- Accuracy: ±1% of full scale.
- Recalibration: External reset screw.
- Stem: rated to 1000 psi. Use of a thermowell is recommended for higher pressure or for heavy duty use.
- Rust and corrosion proof, leak proof or for heavy duty use.
- The bimetal element will withstand a 50% over-range on instruments up to and including 500°F. A 10% over-range is permissible on higher temperature ranges. Under-ranging within the 50% limit on all ranges will not harm its accuracy.
|
| | | RANGES & DIVISIONS
|
When ordering please specify temperature range |
| A) -40°F to 160°F |
2 Degree Divisions |
| B) 0°F to 250°F |
2 Degree Divisions |
| C) 50°F to 500°F |
5 Degree Divisions |
| D) 200°F to 1000°F |
10 Degree Divisions |
| E) -10°C to +70°C |
1 Degree Divisions |
| F) 0°C to 150°C |
1 Degree Divisions |
| G) 0°C to 300°C |
2 Degree Divisions |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| PZ1561751 |
|
0.77 |
|
2 1/2 " Stem All Angle Thermometer |
|
Yes |
|
266,220 |
| PZ1561761 |
|
0.77 |
|
4" Stem All Angle Thermometer |
|
Yes |
|
266,220 |
| PZ1561771 |
|
0.77 |
|
6" Stem All Angle Thermometer |
|
Yes |
|
266,220 |
| PZ1561781 |
|
0.77 |
|
9" Stem All Angle Thermometer |
|
Yes |
|
266,220 |
| PZ1561791 |
|
0.77 |
|
12" Stem All Angle Thermometer |
|
Yes |
|
266,220 |
| PZ156180 |
|
0.77 |
|
15" Stem All Angle Thermometer |
|
Yes |
|
302,940 |
| PZ156181 |
|
0.77 |
|
18" Stem All Angle Thermometer |
|
Yes |
|
321,300 |
| PZ156182 |
|
0.77 |
|
24" Stem All Angle Thermometer |
|
Yes |
|
339,660 |
| PZ156183 |
|
0.77 |
|
30" Stem All Angle Thermometer |
|
Yes |
|
365,364 |
| PZ156184 |
|
0.77 |
|
36" Stem All Angle Thermometer |
|
Yes |
|
403,920 |
| |
|
|
 | |
 |
|
 |
|
