Aco 3144 Áøµ¿°è
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : Aco
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
vibration meter




Type 6226 Sound Level Meter

ACO Vibration Meters for Wide Applications!

vibration meter


More Useful ACO Vibration Meters are based on 25 years' experience.

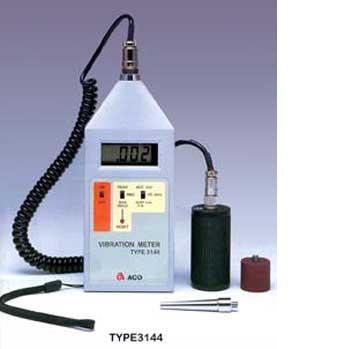

ACO Vibration Meters, Type 3144 & Type 3144A, have high reliability with high accuracy, high sensibility sensor, light weight, digital type and easy operation.

Functions: Accerlation (RMS) / Velocity (RMS) /
Displacement
Type 3144 Standard type (-10oC ~ + 60oC)
Type 3144A for High temperature (-10oC ~ +110oC)
(Option: -10oC ~ +150oC)
Applications: Machine tools, Steel Mills, Blowers, Pumps, Generators, Engines, Boilers, Turbines, Compressors, Bearings, Printing machines and others


vibration meter
vibration meter



SPECIFICATIONS

Frequency Range :3~5,000Hz
Measuring Ranges
Acceleration :0.0~199.9m/s©÷ PEAK(RMS)(3~5,000Hz)
Velocity :0.0~199.9mm/s PEAK(RMS)(10~5,000Hz)
Displacement :0.0~1.99mm PEAK to PEAK (10~1,000Hz)
Display :3 1/2 digit 7 segments,Liquid Crystal
PEAK/RMS/MAX HOLD
Max Hold Reset time, within 1 sec
Overload Warning :"OVER"
Output Socket :2.5mm mini-jack
Output Impedance, Approx, 180¥Ø
AC Output :¡¾2V of full scale
DC Output :£«2V of full scale
Operating Temperature :-10~+50¡É, RH<90%
Accuracy :<¡¾5% of the read out
Battery :2pc¡¿1.5V IEC Type LR6
Manganese dry cell(2pc),approx. 10 hours
Alkaline cell(2pc), approx. 24 hours
Dimensions and Weight :190(W)¡¿80(D)¡¿30(H) Approx.280g


Sensor Specifications:
Type 3144 / 7812A 3144A / 7351A
Body Voltage input Charge input
Sensor Pickup with amplifier Electric charge type pickup
Type 7812A 7351A

Sensitivity

3.0mV/m/s2(30mV/G)
vibration meter 10% at 100Hz

5.0pC/m/s2 (50pC/G)
vibration meter 10% at 100Hz
Horizontal Sensitivity less than 5% less than 5%
Frequency Characteristic 1 Hz ~ 8 kHz 1 Hz ~ 8 kHz
Temp. Range -10oC ~ + 60oC

-10oC ~ +110oC (flexible curl cable)
-10oC ~ +150oC (Low noise cable, option)

Dimension 35mm dia, x 70mm 13.8 mm dia. x 25 mm
Weight approx. 130 grams approx. 32 grams
