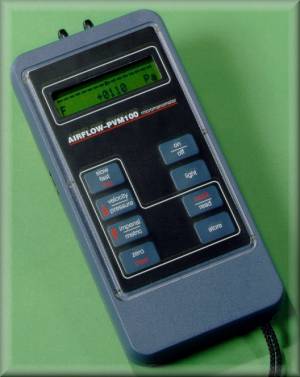

PVM100 Micromanometer
Pressure, Velocity and Professional Performance?
The Airflow PVM100 Micromanometer represents the latest microprocessor
technology can offer by benefiting the user with an outstanding choice of
timesaving features at surprisingly low cost. Reading Air velocity and
Pressure direct, PVM1OO combines exceptional accuracy with a high memory
capability so that up to 60 measured values can be instantly stored,
recalled and reviewed. Incorporating indefinite memory retention with an RS232
output as standard, paper records are a method of the past as
downloading data to a compatible PC., printer or data logger is simplicity
itself. The ergonomic casing with its safety wrist strap comfortably fits
in the hand and is both functional and lightweight. All commands are
accessed via the durable membrane pad by a simple press of a key, a major
advantage for busy site engineers. Ease of reading is also enhanced on the
high clarity dot matrix display by adjustment of the contrast control.
Together with the back light facility, testing in very low light
conditions can now be tackled with ease. Another particularly helpful
feature is the turbulent flow indicator, a digital bar graph which
immediately alerts the user to unstable flow conditions, an important
consideration when traversing in ducts.
Built to exacting standards of quality, accuracy and precision PVM100
is supplied in a robust protective case and is the perfect solution for
reliable, portable measurement or as an integrated part of an expandable
permanent monitoring system.
Calibrated to an Internationally recognised standard the PVM100is
supplied with a FREE TRACEABLE CERTIFICATE OF
CALIBRATION and a reply card is also included for purchasers to
register with our FREE annual calibration reminder service.
All Airflow?/FONT> Instruments, including the
PVM100, are designed to help meet the stringent requirements of the
Control Of Substances Hazardous to Health (COSHH) and Building Regulations
in the UK
For our UK customers the reminder card service ensures valid
certification for COSHH, ISO9001 and Quality Assurance requirements.
THE PVM1OO ADVANTAGE
FEATURES
- Velocity and pressure in metric or imperial display
- Touch Zero and unique "Self Help" user calibration
facility
- Comfortable, one handed operation
- Digital turbulent flow trend indicator
- Fast/slow response for superb accuracy
- User friendly controls with back lit high clarity screen
- RS232 Output, retained memory, averaging with recall
BENEFITS
- One Instrument many options.
- High convenience with accuracy and precision.
- Eliminate manual records and two man testing.
- Indication of un-stable flow conditions
- Comparative values - every time.
- Easily readable even in low light conditions.
- Compatibility with PC's, printers & loggers.
APPLICATIONS
- HVAC testing and balancing.
- Compliance with COSHH regulations.
- Laboratory safety monitoring.
- Useable with all types of pressure sensors.
- R & D Test unit.
- Fully certified for assurance testing.
- Process monitoring.
- Filter condition checks.
- Environmental assessments
| Parameter |
Metric Mode |
Imperial Mode |
| Velocity Range |
0 - 76 m/sec |
0 - 15000 ft/min |
| Pressure Range |
0 - 3500 Pa |
0 - 14 in wg |
| Pressure Resolution |
1 Pa |
0.001 in wg |
| Accuracy @ 20°C |
Better than ±1% of
Reading ±1 Digit |
| Maximum Overload |
17.5 Kpa |
70 in wg |
| Operating Temperature |
-5°C to +50°C |
23°F to 122°F |
| Memory Size |
60 Concurrent Velocity or
Pressure Readings |
| Output |
RS 232 Interface |
| Storage Temperature |
-10°C to +50°C |
14°F to 122°F |
| Power Supply |
4 x 1.5 volt AA Cells
(Rechargeable, Alkaline or Zinc Carbon |
| Battery Life |
Approximately 35 hours
using Alkaline Cells |
| Overall Dimensions |
185 x 92 x 30mm |
7.28 x 3.62 x 1.18 in |
| Weight (less battery) |
290 g |
10.3 oz |
| Standard Accessories |
Durable Carrying Case,
Operating Instructions, RS232 Connecting Plug, PVC Tube Adaptors |
Optional Accessories
(ask for leaflet) |
APU10 Mini Printer, Data
Logger, Manometer Accessory Kit, Pitot Static Tubes (Various
Lengths), Telescopic Pitot Static Tube, Flow Grids |
|
