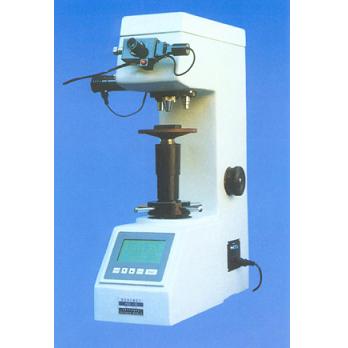

MODEL HVS-50 DIGITAL DISPLAY

VICKERS HARDNESS TESTER

Features:

 . The test procedure is performed automatically.

 . The test result can be converted into various hardness

   values automatically.

 . An advanced frictionless loading shaft mechanism is

   adopted. It can ensure the accurate and reliable test.

Specifications

   Measuring range: 5-2900HV

   Test force: 9.807、49.03、98.07、196.1、294.2、490.3N

               (1, 5, 10, 20, 30, 50kgf)

   Max. height of test piece: 180mm

   Depth of throat: 125mm

   Magnifications of the optical micrometer: 125X, 50X

   Min. scale value of the optical micrometer: 1μm, 2.5μm

   Power supply: 220V AC or 110V AC, 50/60Hz

   Dimensions: 580 x 260 x 730mm

   Weight: Approx. 90kg

Main accessories:

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Diamond pyramid pebetrator: 1 pc.

   Vickers standardized block: 3 pcs.
