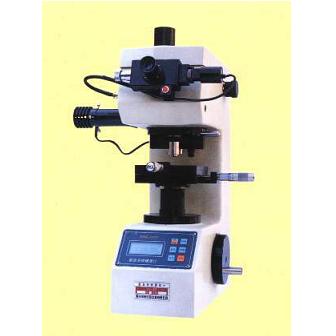

MICROHARDNESS TESTER

Features

 . A frictionless loading shaft mechanism is adopted in

   the instrument. As a result, the steady test force

   has been ensured and the test accuracy has been increased.

 . Computer and angular displacement sensor are adopted

   so that the test procedure, hardness value display

 and data-printing are performed automatically.

Specifications

   Measuring range: 5-3000HV

   Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961,

               2.942, 4.904, 9.807N

               (10, 25, 50, 100, 200, 300, 500, 1000gf)

   Magnifications of the measuring system: 500X, 125X

   Measuring accuracy: ±0.2μm

   Max. height of test piece: 75mm

   Depth of throat: 100mm

   Power supply: 220V AC or 110V AC, 50/60Hz

   Dimensions: 340 x 160 x 378mm

   Weight: approx. 40kg

Main accessories

   Coordinate anvil: 1 pc.

   Thin shaft anvil: 1 pc.

   Thin plate anvil: 1 pc.

   Flat nose pliers: 1 pc.

   Large V-notch anvil: 1 pc.

   Small V-notch anvil: 1 pc.

   Diamond pyramid penetrator: 1 pc.

   Micro-Vickers standardized block: 2 pcs.

   Printer: 1 pc.
