| Sword probe with handle. Suitable for measuring the equilibrium moisture content, e.g. in paper piles. |
FHA636SRx Capacitive
Humidity Sensor Type

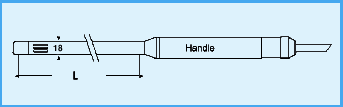

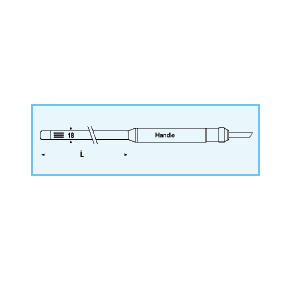

● Sword probe with
handle.
● Suitable for
measuring the equilibrium moisture content,
e.g. in paper piles.
| Types: |
| FHA636SR1 |
Length L = 280mm |
| FHA636SR2 |
Length L = 420mm |
Accessories:
ZA9060VK2 Extension
cable, 2m long
ZA9060VK4 Extension cable, 4m long |
| Technical Data: |
| Operative range : |
-20 to +60 °C / 5 to 98 % r.H. |
| Humidity Measuring Circuit |
| Measuring range: |
0 … 100% r.H. |
| Sensor: |
capacitive |
| Accuracy: |
±1.5% r.H. at nomin. temperature
±2.5% r.H.< 10% and > 90% |
| Reproducibility: |
0.5% r.H. |
| Nominal temperature: |
23°C ±2°C |
| Response time T63: |
15s without filter at 1m/s
air speed |
| Temperature Measuring Circuit |
| Sensor: |
Pt100, Class B |
| Accuracy: |
±0.3K at nominal temperature |
| Reproducibility: |
0.1K |
| Mechanical construction |
| Sensor sword: |
aluminium, 18 x 4mm,
tip 0.8mm rounded |
| Sensor handle: |
plastic, 190mm long,
operational from -20 to 60°C |
| Cable: |
2m long, ALMEMO® connector |
|
| |
|
|
 | |
 |
|
 |
|
