Capacitive humidity sensor with or without temperature sensor, particularly suitable for conduit mounting.

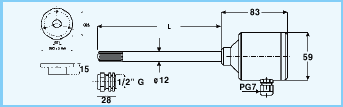

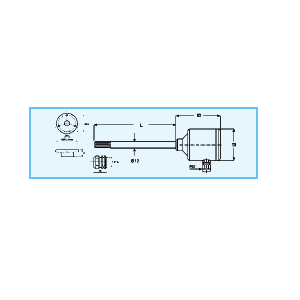

MT8xx6KxRx Conduit-Mt. Sensor Type

● Capacitive humidity sensor with or without temperature
sensor, particularly suitable for conduit mounting.
● Suitable for stationary measurements in climatology.
● Designed for power supply with 15 … 24VDC.

Accessories:

ZB9600KV	Movable aluminium screw connection With Teflon sealing ring
ZB9600F	Connecting flange for screw connection, Hole circle 38mm Ø

Technical Data:

Operative range :
Sensor :
Head :

-30 to +70 °C, 5 to 98 % r.H.
0 to +60 °C, 0 to 90 % r.H.
(non-condensing)

Temperature Measuring Circuit

Sensor:

PT100 or NTC type N

Accuracy:

Pt100:	IEC 751, Class B
NTC:	-20 … 0°C: ±0.4°C 0 … 70°C: ±0.1°C

Mechanical Construction

Sensor tube:

aluminium, 12mm

Protective cap:

SK7, metal-mesh filter

Connecting head:

made of black PVC

Types:
Transmitters for conduit mounting, connection via screw terminals
	Temperature Sensor	Signal Output (corresponds to 0…100 % r.H./-30…+70°C)	Length
MT8616K1R2	without	0 … 10V	L = 122mm
MT8616K2R2	without	0 … 10V	L = 262mm
MT8616K3R2	without	0 … 10V	L = 522mm
MT8616K1R5	without	0 … 1V	L = 122mm
MT8616K2R5	without	0 … 1V	L = 262mm
MT8616K3R5	without	0 … 1V	L = 522mm
MT8716K1R3	without	0 … 20mA	L = 122mm
MT8716K2R3	without	0 … 20mA	L = 262mm
MT8716K3R3	without	0 … 20mA	L = 522mm
MT8716K1R4	without	4 … 20mA	L = 122mm
MT8716K2R4	without	4 … 20mA	L = 262mm
MT8716K3R4	without	4 … 20mA	L = 522mm
MT8636K1R2	Pt100	2 x 0 … 10V	L = 122mm
MT8636K2R2	Pt100	2 x 0 … 10V	L = 262mm
MT8636K3R2	Pt100	2 x 0 … 10V	L = 522mm
MT8636K1R5	Pt100	2 x 0 … 1V	L = 122mm
MT8636K2R5	Pt100	2 x 0 … 1V	L = 262mm
MT8636K3R5	Pt100	2 x 0 … 1V	L = 522mm
MT8736K1R3	Pt100	2 x 0 … 20mA	L = 122mm
MT8736K2R3	Pt100	2 x 0 … 20mA	L = 262mm
MT8736K3R3	Pt100	2 x 0 … 20mA	L = 522mm
MT8736K1R4	Pt100	2 x 4 … 20mA	L = 122mm
MT8736K2R4	Pt100	2 x 4 … 20mA	L = 262mm
MT8736K3R4	Pt100	2 x 4 … 20mA	L = 522mm

FHA646-1x/-KxC/-2x/-7/-5x/-WG
Protective caps for capacitive humidity sensors Type

Dimensions : length approx. 33 mm, diameter 12 mm

Types :
	Type	Designation	Pore- size	Maximum temperature	Typical Application
SK7	ZB9600SK7	Metal-mesh filter in PC-housing	100 μm	120°C	Universal, for medium, contamination, also high humidity
SK6	ZB9600SK6	PTFE-Sinterfilter	50 μm	180°C	High chemical resistance
SK8	ZB9600SK8	Stainless steel sinter filter	10 μm	180°C	For severe mechanical stress, heavy contamination, strong air flow

Brackets for wall mounting		Movable screw connection

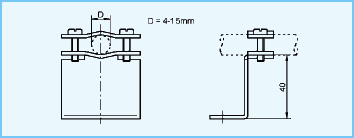

ZB9600W	Brackets for wall mounting, distance from wall approx. 40 mm	ZB9600KV	Movable aluminum screw connection with Teflon sealing ring

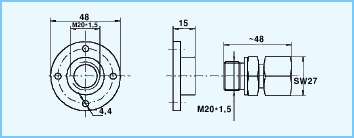

		ZB9600F	Connecting flange for screw connection, hole circle 38 mm Ø
