| Each ozone sensor is supplied with a calibration certificate.As a result of the high long-term stability, only small maintenance costs. |

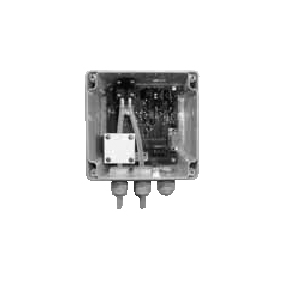

FYA600O3
Ozone Measuring Transducer Type
● Suitable for many
measuring tasks where ozone
measurements for control purposes were too expensive to date, e.g. for leakage
tests in industry, for protection of health and safety standards at work,
for mobile air quality measurements etc.
● Each ozone
sensor is supplied with a calibration certificate.
● As a result
of the high long-term stability, only small
maintenance costs.
| Type: |
| FYA600O3 |
Ozone sensor including connecting cable
1.5m long for O3 measurements in air |
| Option: |
| OY9600O3D |
Pump in continuous operation
(fixed factory setting) |
| ZB9600O3S |
Maintenance set :
new electro-chemical measuring cell,
pump replacement,
readjustment, including calibration certificate |
|
| Technical Data: |
| Gas: |
O₃ (ozone) |
| Measuring principle: |
electrochemical
three-electrode sensor |
| Measuring range: |
0 … 300 ppb |
| Accuracy: |
typically 5% of final value under
nominal conditions (for
intermittent operation) |
| Long term accuracy: |
after 12 months under nominal
conditions typically 5% of final
value (for intermittent operation) |
| Exposure period : |
until specification is reached, at
least 2 hours (at 200 ppb); for a
prolonged period the device was
in an ozone-free environment |
| Meas. interval: |
pump on: 5min
pump off: 10min |
| Pump flow rate: |
500ml/min |
| Signal output: |
0 … 2V,
load resistance > 100kΩ |
| Power supply: |
6 to 14V, stable |
| Current consumption: |
pump on : 50 mA, typical
pump off : 25 mA, typical
pump blocked : 180 mA, typical |
| Overload capacity: |
1 ppm |
| Expected useful life : |
Sensor, typically 24 months
(at 20 °C) pump, typically 6000 hours |
| Nominal conditions: |
20°C, 30% r.H., 1013 mbar,
no contaminations of the contact surfaces |
| Operating range : |
-20 to +40 °C / 30 to 80 % RH |
| Storage temperature: |
0 to 20°C, at 30 to 80% RH non-condensing |
| Dimensions: |
L 180mm x W 125mm x H 90mm |
| Connecting cable: |
1.5m long with ALMEMO® connector programmed in ppb |
|
| |
|
|
 | |
 |
|
 |
|
