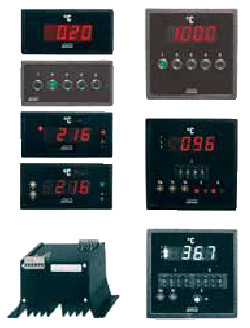

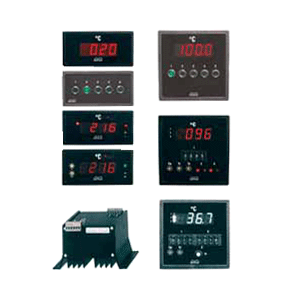

THERM 4100/4200 Display Units, Limit Value Switches,
Controll
● Analog linearisation.
Various standard measuring ranges. Digital display of the actual value in
red or green. Rear connectors with removable connector blocks.
● Limit
value switches and controllers:
Analog contact setting through slit potentiometer by pressing a key, which
causes the nominal value to be displayed instead of the actual value. Digital
setting of the nominal value via code switches (THERM 4200 only). Adjustable
feedbacks with normal (standard), fast or slow operation.
● Safety
functions:
Sensor breakage protection, meas. circuit monitoring through additional
limit value channels. For limit value switches and
controllers: automatic shut-off in case of a power failure.
● Various
selective options allow for an optimal adaptation and, as a result, for
infinite applications in industrial production and control engineering.
|
| Technical Data: |
| Measuring input: |
terminal blocks, removable |
| Sensor power supply: |
options: 24VAC, 12VAC,
12VDC, (max. 40mA) |
| Measuring method: |
dual-slope integrating |
| Conversion rate: |
3 measurements per second |
| Input impedance: |
voltage input 100kΩ,
current input 100Ω |
| System accuracy: |
±1 digit |
| Temperature drift: |
0.05%/K |
| Cold junction compensation: |
effective in range
-10 to +50°C |
| Equipment: |
| Display: |
31/2-digit, 7-segment LED red
(optional green), 13mm high |
| Outputs: |
| Limit val. switches & controllers: |
center-zero relay 230V,
4A ohmic load |
| Switching hysteresis: |
< 2 digits, or as specified |
| Continuous controllers: |
proportional output signal 0 to
20mA for Triac power output
stage |
| Analog output (option): |
not in case of cont. controllers |
| Power supply: |
230V 50-60Hz;
optional: 110V 60Hz, 12VDC,
24VAC, 24VDC |
| Current consumption: |
approx. 4.5VA |
| Housing: |
| Dimensions: |
4100: W 96x H 48x D 160mm,
panel opening: 90 x 42.5mm
4200: W 96x H 96x D 160mm,
panel opening: 90 x 90mm |
| Weight: |
approx. 400-600g |
| Permiss. ambient temperature: |
0 to 50°C |
| Storage temperature: |
-30 to +70° |
|
| Options for Power Supply: |
| OT4000U2 |
DC voltage 12VDC |
| OT4000U4 |
DC voltage 24VDC |
| OT4000U3 |
AC voltage 24VAC, 50/60Hz |
| OT4000U5 |
AC voltage 110VAC, 50/60Hz |
| Options for Analog Outputs: |
| OT4000R1 |
Analog output 5mV/°C |
| OT4000R5 |
Analog output 0 to 1V |
| OT4000R2 |
Analog output 0 to 10V |
| OT4000R3 |
Analog output 0 to 20mA |
| OT4000R4 |
Analog output 4 to 20mA |
| Options for Sensor Power Supply |
on request |
| Options for Additional Coupled Contacts |
on request |
|
| Types |
| Display Units: |
| MT4190 |
Panel device 96 x 48mm |
| MT42905 |
Panel device 96 x 96mm with meas. point change-over
switch 5-fold |
| UT41005 |
Meas. point change-over switch 5-fold, 96 x 48mm |
| Limit Value Switches: |
| MT4116 |
Limit value switch 96 x 48mm, 1 limit value analog
adjustable |
| MT41161 |
Limit value switch 96 x 48mm, 2 limit values analog
adjustable |
| MT4216 |
Limit value switch 96 x 96mm, 1 limit value analog
adjustable |
| MT42161 |
Limit value switch 96 x 96mm, 2 limit values analog
adjustable |
| MT4217 |
Limit value switch 96 x 96mm, 1 limit value digital
adjustable |
| MT42171 |
Limit value switch 96 x 96mm, 2 limit values digital
adjustable |
| MT42182 |
Limit value switch 96 x 96mm, 1 limit value digital
adjustable and 2 limit values analog adjustable |
| MT42183 |
Limit value switch 96 x 96mm, 2 limit values digital
adjustable and 2 limit values analog adjustable |
| Two-Step Controllers: |
| RT4126 |
Two-step controller 96 x 48mm, control contact analog
adjustable |
| RT4226 |
Two-step controller 96 x 96mm, control contact analog
adjustable |
| RT42261 |
Two-step controller 96 x 96mm, control contact analog
adjustable, 1 additional limit value analog |
| RT4227 |
Two-step controller 96 x 96mm, control contact digital
adjustable |
| RT42271 |
Two-step controller 96 x 96mm, control contact digital
adjustable, 1 additional limit value digital |
| RT42281 |
Two-step controller 96 x 96mm, control contact digital
adjustable, 1 additional limit value analog |
| RT42282 |
Two-step controller 96 x 96mm, control contact digital
adjustable, 2 additional limit values analog |
| RT42282D |
Two-step controller 96 x 96mm, control contact digital
adjustable, 1 limit val. digital, 1 limit val. analog |
| RT42283 |
Two-step controller 96 x 96mm, control contact digital
adjustable, 1 limit val. digital, 2 limit val. analog |
| Three-Level Controllers: |
| RT4136 |
Three-level controller 96 x 48mm, control contact
and dead zone analog adjustable |
| RT4238 |
Three-level controller 96 x 96mm, control contact
digital adjustable, dead zone analog adjustable |
| Three-Level Step Controllers: |
| RT4146 |
Three-level step controller 96 x 48mm, control contact
and dead zone analog adjustable |
| RT4248 |
Three-level step controller 96 x 96mm, control contact
digital adjustable, dead zone analog adjustable |
| Continuous Controllers: |
| RT4156 |
Continuous controller 96 x 48mm, control output analog
adjustable |
| RT4256 |
Continuous controller 96 x 96mm, control output analog
adjustable |
| RT42561 |
Continuous controller 96 x 96mm, control output analog
adjustable, 1 additional limit value analog |
| RT4257 |
Continuous controller 96 x 96mm, control output digital
adjustable |
| RT42571 |
Continuous controller 96 x 96mm, control output digital
adjustable, 1 additional limit value digital |
| RT42581 |
Continuous controller 96 x 96mm, control output digital
adjustable, 1 additional limit value analog |
| RT42582 |
Continuous controller 96 x 96mm, control output digital
adjustable, 2 1 additional limit values analog |
| RT42582D |
Continuous controller 96 x 96mm, control output digital,
1 limit value digital, 1 limit value analog |
| RT42583 |
Continuous controller 96 x 96mm, control output digital,
1 limit value digital, 2 limit values analog |
| Triac Power Output Stages: |
Technical data: Input 4 to 20mA, approx.
250Ω; ohmic load cos φ = 1; operating voltage 230V - 14% +8%, 45 -
65Hz;
Protection: fuse not integrated. The device must be externally protected
according to the specified maximum current by using a fastacting fuse. |
| ZB4000TR12 |
Triac power output stage 12A, for 300 to 2000VA |
| ZB4000TR16 |
Triac power output stage 16A, for 350 to 2800VA |
|
| |
|
|
 | |
 |
|
 |
|
