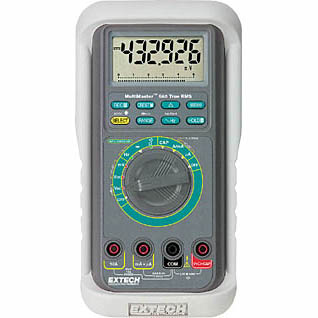

상품 상세보기 : 멀티메터 Multimeter - EH560 MultiMaster Precision MultiMeter

The Precision Series of precision multimeters are designed for the most demanding applications.
Basic DCV accuracy of 0.02% (EH570) demonstrates the accuracy and resolution that is carried through all the measurement functions.
Special features include adjustable trigger level in the Frequency function, Smart Auto Power Off, fast Continuity test, Relative, Hold and Peak Capture.
The rugged splash proof case is enhanced with a heavy duty rubber holster. The optional PC software and cable can be used to link the multimeter to a PC for data collection and analysis.

Features

AC+DC True RMS — Accurate measurements on non-sinusoidal or distorted waveforms with both AC and DC components
4-20mA — Displays process current measurements as 0 to 100%
Peak — Capture glitches down to 800µs in duration
Auto Power Off — Smart auto power off is disabled if a signal is present
Max/Min — Stores maximum and minimum readings
PC Interface — Optional Windows® 95/98/NT/2000 compatible software for data display, storage and analysis
Includes — Double injection molded CAT III-1000V Test leads, Type K thermocouple probe (EH570), protective holster and 9V battery
Three year warranty

SPECIFICATIONS

	EH560	EH570
Display counts	50,000/500,000
Basic DC Volt Accuracy	0.03%	0.02%
AC Amp Range	0.01uA to 10A (20A for 30 sec.)
DC Amp Range	0.01uA to 10A (20A for 30 sec.)
AC Volt Range	0.01mV to 1000V
DC Volt Range	0.001mV to 1000V
Ohms Range	0.01Ω to 50MΩ	0.01Ω to 500MΩ
Capacitance Range	50nF to 999μF
Frequency Range	5Hz to 2MHz
Temperature Range	N/A	-58°F to 1832°F (-50 TO 1000°C)
Continuity/Diode	yes
PC software/cable	optional

Catalog No.	Description	Price
EH560	MultiMaster Precision MultiMeter	457,164
EH570	MultiMaster Precision MultiMeter with Temperature	548,964
EH810	Software Diskette and Serial Cable	163,404
EH899	Vinyl Pouch Carrying Case	34,884
